The K-Vision Camera Registration System is a fully integrated hardware and software solution engineered specifically for high-precision vector cutting and raster engraving of preprinted materials. Designed and manufactured by Kern Laser Systems in Minnesota, USA, K-Vision eliminates manual material squaring and fixturing guesswork on complex production floors.
In real-world manufacturing, preprinted sheet media—ranging from cast acrylics and aluminum composite panels to cardboard and technical textiles—frequently suffer from graphic distortion, thermal stretch, or material rotation during the printing and handling phases. The K-Vision optics mount directly beside the laser processing nozzle to capture physical fiducial registration marks automatically, ensuring 100% path accuracy on every part.
Combining industrial vision optics with native KCAM motion control software to automate contour alignment in four standardized steps.

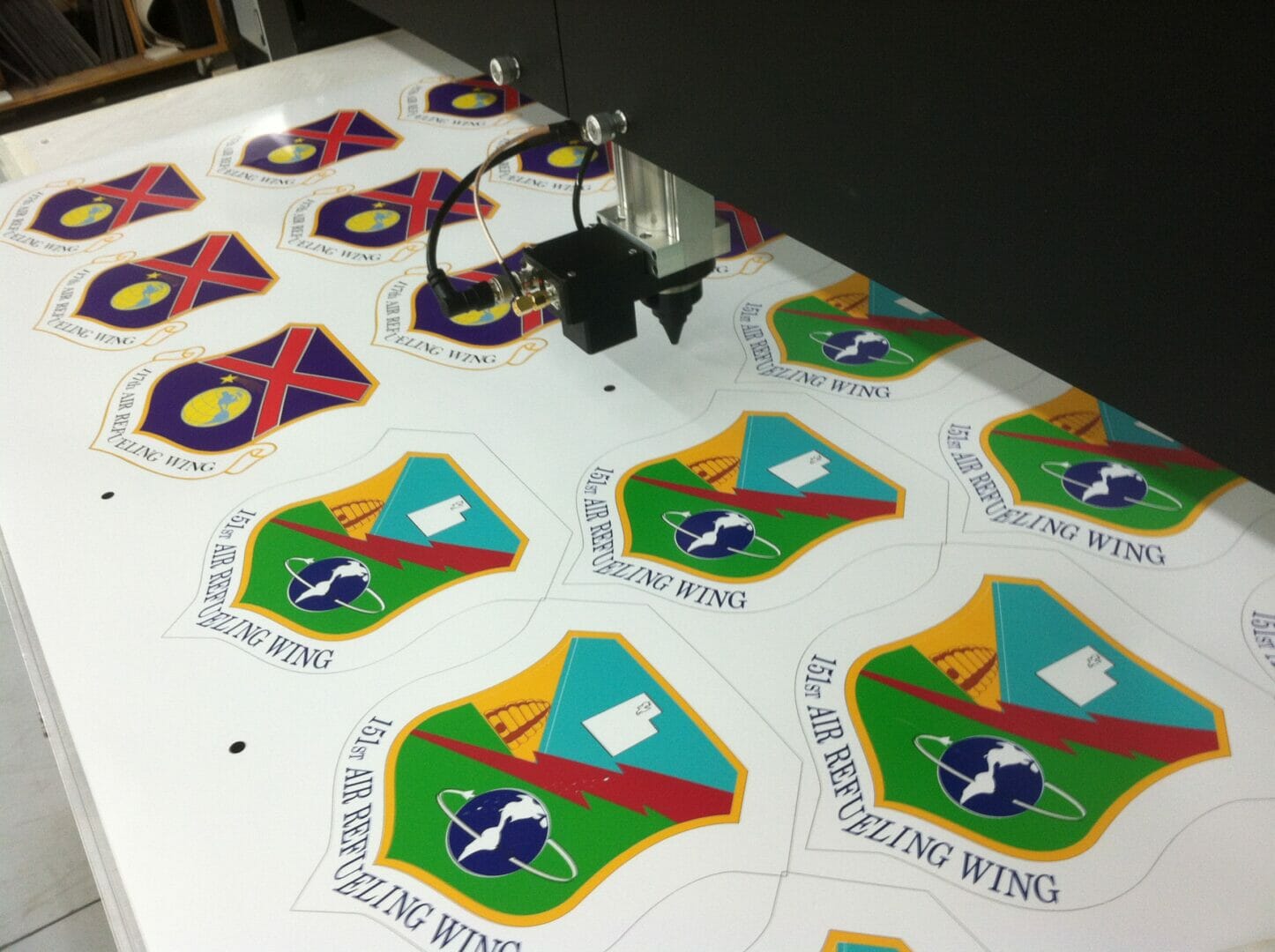

Upon sheet loading, the gantry-mounted digital camera rapidly moves across the bed, using high-resolution optical lenses to pinpoint registration marks (dots, crosses, or custom targets) printed along the border of the sheet.
KCAM software calculates spatial deviations between actual physical target centers and the theoretical coordinates in the original vector file, detecting linear shift, angular skew, and non-linear stretch.
Before the laser beam fires, the motion path algorithm scales, rotates, and morphs cut contours across both vector cut lines and raster engraving zones to fit the unique geometry of the printed graphic perfectly.
Engineered to high industrial tolerances, K-Vision ensures maximum edge quality and repeatability for demanding global production lines.
| Component | Specification / Details |
|---|---|
| Camera Mounting | Nozzle-adjacent, quick-release gantry bracket |
| Target Detection | Standard circular dots, registration crosses, custom targets |
| Lighting Array | Integrated high-intensity LED ring light for high contrast |
| Storage Protection | Includes rugged, foam-lined protective storage briefcase |
| System Alignment | Automatic multi-point calibration via KCAM interface |
| Laser Machine Series | Compatible Configuration |
|---|---|
| OptiFlex Large Format | Fully Integrated / Field Upgradeable |
| LaserCELL Class 2 Enclosure | Fully Integrated / Factory Option |
| FiberCELL Sheet Metal | Specialty Material Option |
| EcoFlex & Micro Series | Factory Option Available |
| OptiDual Multi-Head | Synchronized Dual-Head Vision Alignment |
Eliminate scrap rate and secondary manual labor across diverse commercial and industrial product manufacturing sectors.

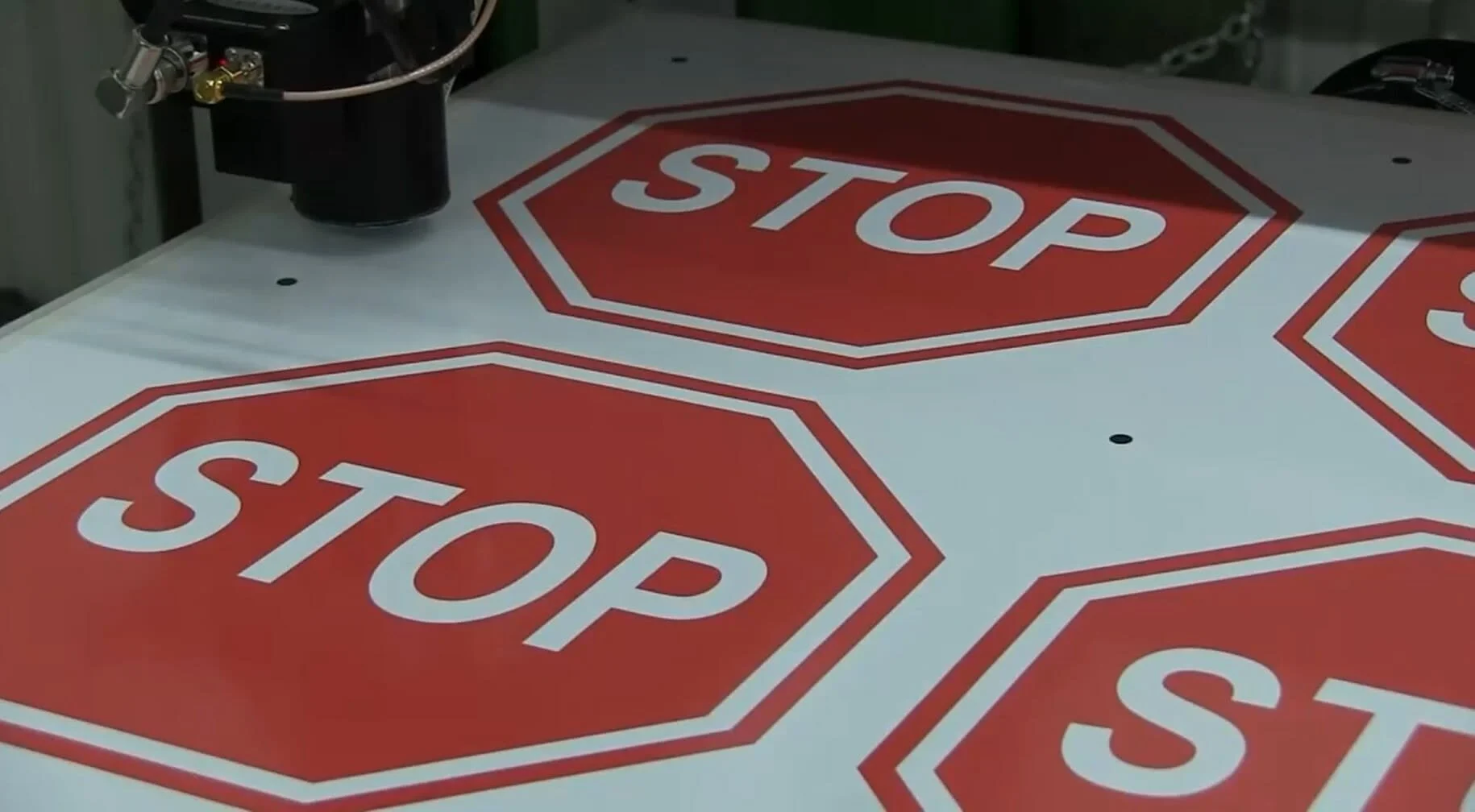

Accurate contour trimming around preprinted highway signs, reflective vinyl graphics, and outdoor aluminum-plastic composite displays without manual squaring.

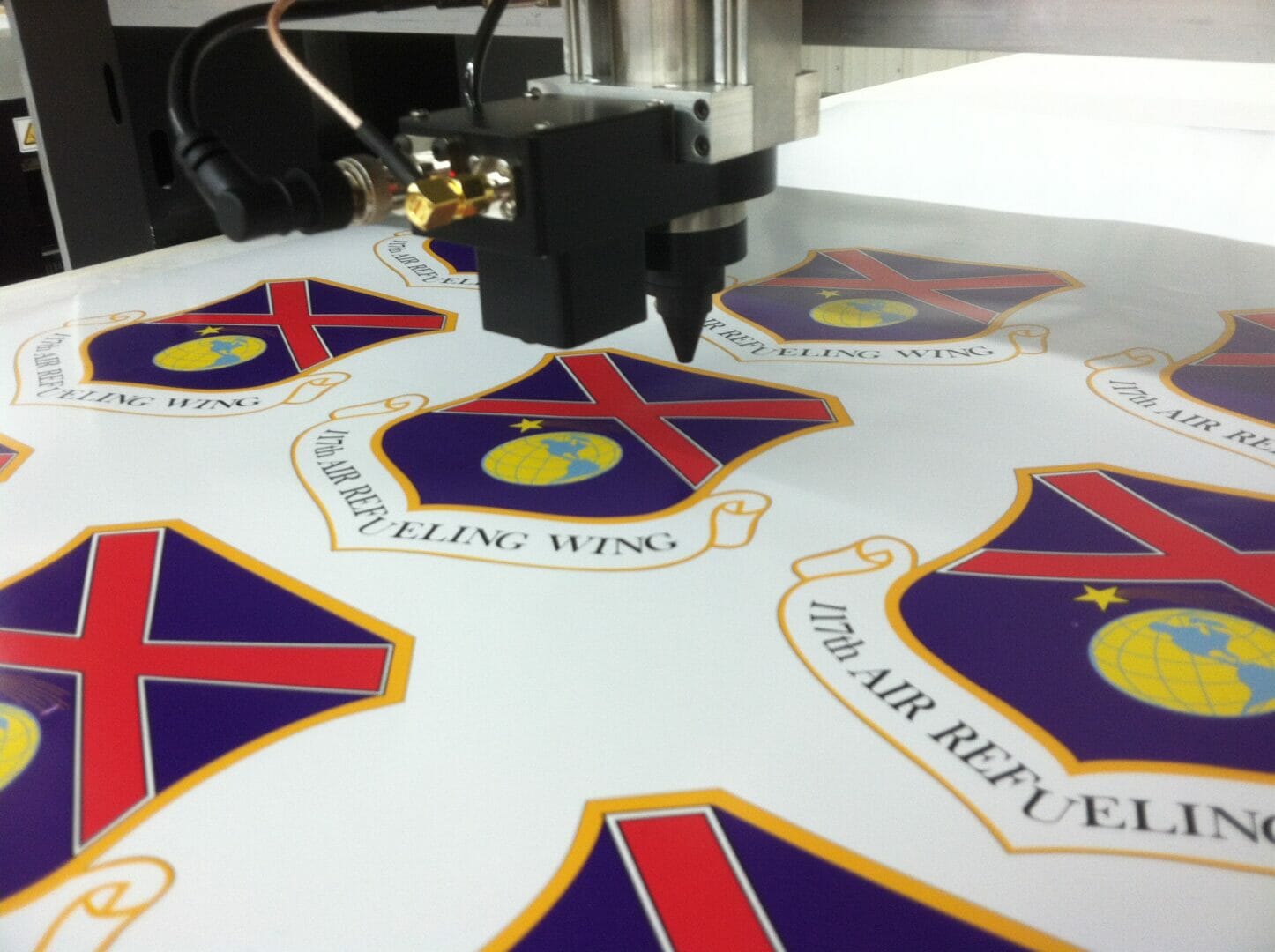

Achieve flame-polished edge quality on UV-printed acrylic sheets, point-of-sale displays, and branded store fixtures while preserving total graphic alignment.
High-volume processing of membrane switches, printed polycarbonates, metallic tags, and control panel overlays with tight tolerance requirements.
Answers to technical procurement and operational questions from international buyers.
K-Vision uses an industrial nozzle-mounted digital camera to detect printed fiducial marks on loaded materials. KCAM software compares the captured physical positions against the original CAD cut file. The software mathematically shifts, scales, rotates, and deforms vector cut paths in real time to match the distorted print, preventing scrap caused by material stretch or print shift.
Yes. The camera assembly features a heavy-duty quick-release magnetic/mechanical mounting system. When running unprinted wood, standard acrylic, or metal sheets, operators can remove the camera within seconds and place it inside the provided foam-padded protective storage case.
K-Vision detects a variety of standard printed fiducials including circular black dots, target crosses, squares, and high-contrast printed edges on diverse substrate surfaces.
In most instances, yes. Kern laser machinery built with compatible KCAM software packages can be retrofitted with the optical camera hardware kit and license upgrade. Contact our factory engineers to confirm retrofitting compatibility for your current machine serial number.
Send your printed material samples to our Minnesota application lab for zero-cost optical test cutting, detailed cycle time studies, and precision measurement verification reports.
