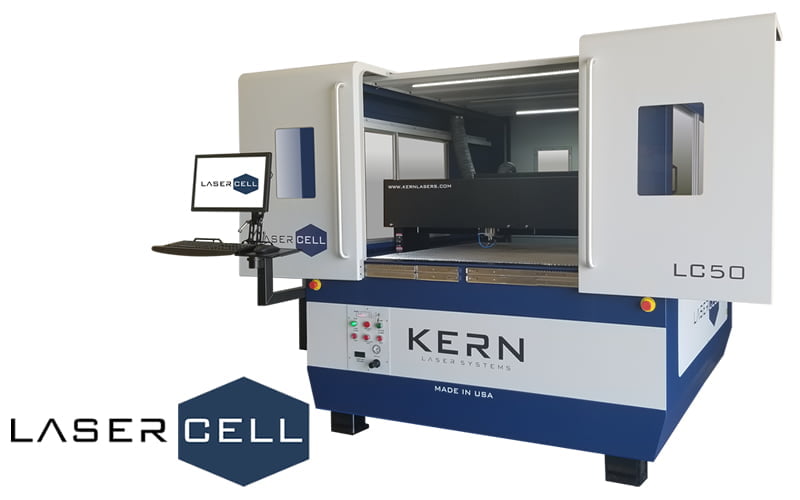

LaserCELL Enclosed Laser System
Industrial Grade CO2 & Fiber Laser Cutting and Engraving Machine with Full Safety Protection
High Performance Meets Uncompromised Safety
The LaserCELL is Kern Laser Systems' premier Class 2 enclosed laser cutting and engraving machine. Engineered specifically for high-traffic environments—such as busy production floors, university laboratories, and shared industrial facilities—the LaserCELL delivers maximum processing power without compromising operator safety.
Built around a heavy-duty, one-piece steel weldment in Minnesota, USA, the LaserCELL features interlocked safety doors on the front, back, and sides, providing 360-degree accessibility for rapid material handling and quick maintenance routines.
- Class 2 Enclosure Compliance: Fully enclosed work environment allows deployment near personnel without dedicated laser room infrastructure.
- HyperDual High-Speed Motion: Rack and pinion drive system powered by closed-loop dual servo motors for exceptional acceleration and edge accuracy.
- CO2 & Metal Cutting Versatility: Configurable with laser sources from 100W up to 650W to process acrylic, wood, foam, and sheet metals.
LaserCELL Platform Specifications
Compare Imperial and Metric engineering metrics for precise plant integration and production planning.
| Parameter | Standard Configuration | Extended Configuration |
|---|---|---|
| Laser Safety Classification | Class 2 Safety Enclosure | Class 2 Safety Enclosure |
| Laser Wattage Options | 100W, 150W, 200W, 250W, 400W, 650W CO2 / Fiber | 100W, 150W, 200W, 250W, 400W, 650W CO2 / Fiber |
| Work Envelope (W x L) | 52" × 50" (1320 × 1270 mm) | 52" × 100" (1320 × 2540 mm) |
| Positioning Accuracy | ±0.002" | ±0.002" |
| Positional Repeatability | ±0.0005" | ±0.0005" |
| Machine Footprint (W × L × H) | 74" × 85" × 75" | 74" × 139" × 75" |
| Z-Axis Part Clearance | 3" Standard (Custom Heights Available) | 3" Standard (Custom Heights Available) |
| Electrical Requirement | 230V/1ph, 230V/3ph, 415V/3ph CE, 480V/3ph | 230V/1ph, 230V/3ph, 415V/3ph CE, 480V/3ph |
| Parameter | Standard Configuration | Extended Configuration |
|---|---|---|
| Laser Safety Classification | Class 2 Safety Enclosure | Class 2 Safety Enclosure |
| Laser Wattage Options | 100W to 650W Super-Pulsed CO2 / Fiber | 100W to 650W Super-Pulsed CO2 / Fiber |
| Work Envelope (W x L) | 1320 × 1270 mm | 1320 × 2540 mm |
| Positioning Accuracy | ±0.0508 mm | ±0.0508 mm |
| Positional Repeatability | ±0.0127 mm | ±0.0127 mm |
| Machine Footprint (W × L × H) | 1880 × 2159 × 1905 mm | 1880 × 3531 × 1905 mm |
| Z-Axis Part Clearance | 76.2 mm Standard (Custom Options Available) | 76.2 mm Standard (Custom Options Available) |
| Electrical Requirement | 230V 1-Phase / 3-Phase, 415V 3-Phase CE, 480V 3-Phase | 230V 1-Phase / 3-Phase, 415V 3-Phase CE, 480V 3-Phase |
Standard Factory-Integrated Features
Every LaserCELL system is delivered fully assembled and calibrated from our Minnesota manufacturing plant with essential turnkey subsystems.
Super-Pulsed CO2 Laser Source
Super pulse laser technology built in-house delivers peak energy burst for clean cutting of thick acrylics and reduced heat affect on metals.
Closed-Loop Industrial Chiller
Dedicated chilling package monitors and controls laser source thermal levels to maximize tube lifespan and maintain stable beam power output.
Integrated Downdraft Table
High-vacuum downdraft table holds thin sheet stock perfectly flat while exhausting fumes and airborne particulate below the cutting plane.
UL Certified Electrical Panel
Built to strict safety guidelines, every electrical cabinet carries UL/CUL certification with optional CE compliance for international markets.
HyperDual Motion Servo Package
High-speed dual servo drives mounted on precision ground linear rails deliver precise contouring without chatter or corner deceleration burn.
KCAM Control & CAD Workstation
Includes an industrial PC workstation, adjustable ergonomic monitor arm, native KCAM software, and CorelDRAW Graphics Suite suite pre-installed.
360-Degree Access Enclosure
Counter-balanced sliding doors at the front, rear, and sides allow effortless material loading, fixture placement, and optic maintenance.
Factory Operator Training
Comprehensive 2-day hands-on operational, safety, maintenance, and software training course at the Kern factory in Wadena, Minnesota, USA.
Modular Production Upgrades
Enhance your LaserCELL system with specialized processing hardware designed for high-mix manufacturing.
Sheet Metal Cutting Package
Equips CO2 platforms with auto-capacitive height tracking and high-pressure assist gas injection (Nitrogen, Oxygen, Clean Dry Air). Cut stainless steel, mild steel, aluminum, and brass with dross-free edges requiring zero secondary deburring.
K-Vision Camera Registration
Gantry-mounted digital vision system captures preprinted registration fiducials. Software algorithms automatically adjust cut lines to compensate for sheet distortion, stretch, and rotation in preprinted graphic applications.
Pipe & Tube Rotary Attachment
High-resolution servo-driven Chuck Rotary or Wheel Rotary assemblies process cylindrical metal tubing, pipes, and wooden posts. Easily swap between flat table processing and rotary operations.
Fume Extraction & Spark Arrestor
Multi-stage filtration recirculates clean air back into your facility, eliminating external roof ducting requirements. Optional inline spark arrestor protects filter elements during metal cutting operations.
Versatile Processing Across Materials
The LaserCELL delivers smooth vector cutting and high-resolution raster engraving across a wide material spectrum.
| Material Category | Cutting Capability | Engraving Capability | Typical Applications |
|---|---|---|---|
| Cast & Extruded Acrylic | Up to 1.5" Thick (Flame Polished Edge) | High Detail Surface Rastering | Commercial Signage, Architectural POP Displays, Retail Fixtures |
| Stainless Steel & Carbon Steel | Up to 0.25" Thick (With Metal Option) | Surface Marking & Etching | Machine Guards, Brackets, Tooling Plates, Custom Hardware |
| Hardwood, Plywood & MDF | Up to 1.0" Thick (Low Char Edge) | Deep 3D Contour Relief | Architectural Millwork, Furniture Components, Awards & Trophies |
| PE, PU & EVA Foams | Clean Sealed-Edge Cutting | Surface Recessing | Shadow Boards, Tool Kit Inserts, Packaging Foam, Gaskets |
| Leather & Technical Textiles | High Speed Non-Contact Cutting | Precision Branding & Marking | Apparel Accents, Industrial Gaskets, Filter Media, Upholstery |
What Manufacturers Say About Kern
Real feedback from international production managers and shop owners operating Kern equipment.
"Kern builds some of the finest machinery I have worked with in 30 years of business. The LaserCELL setup required no specialized third-party personnel to commission—it was operational out of the crate. If we buy another machine, it will definitely be a Kern."Gian Luca Vighi President, Vighi A. & C. Snc (Italy)
"When evaluating high-performance lasers, Kern's engineering stood out. The build quality, USA-made chassis, and responsive tech support give us full confidence running multi-shift jobs."Rich Domikis Managing Partner, Cabin Digital LLC
"Kern Laser Systems provides exceptional machines backed by fast direct-factory engineering support. Their technicians helped us fine-tune vector speed settings for thick material, eliminating striations entirely."Max Martin IT & Systems Specialist, Clear Image Inc.
Request a Technical Quote or Sample Cut
Consult with our USA engineering team to review specs, evaluate material compatibility, or schedule a live video demonstration of the LaserCELL system.
