Industrial laser cutting systems deliver unmatched processing speed, extreme edge clarity, and repeatable accuracy compared to conventional CNC routers. Kern's heavy-duty CO2 laser platforms melt and vaporize acrylic with fine thermal control, delivering a brilliant, flame-polished cut edge in a single pass.
By eliminating manual edge buffing, sanding, and chemical flame polishing, commercial fabricators significantly lower labor costs and increase factory throughput. Interchangeable focal lens assemblies allow operators to instantly adapt beam delivery — switching from deep cutting on thick acrylic sheets to micro-fine raster etching with clean, frosty-white high-contrast marking.
Kern CO2 laser machines process a wide array of cast and extruded polymethyl methacrylate (PMMA) acrylic formulations, branded plastics, and engineered polymers.
Ideal for laser engraving and thick structural cuts. Yields a bright, frosty white mark when etched and crystal-clear polished edges when cut.
Optimal Clarity Zero Melt HazeCuts rapidly with low power requirements. Produces smooth, flame-polished edges suitable for high-volume retail displays and protective guards.
High Cutting Speed Cost-EffectiveStandard commercial trade-name acrylics processed effortlessly without surface burning or heat discoloration across all bed dimensions.
Signage Grade GlazingHigh-grade acrylic polymers optimized for LED edge-lit signage, optical light guides, and precision corporate awards.

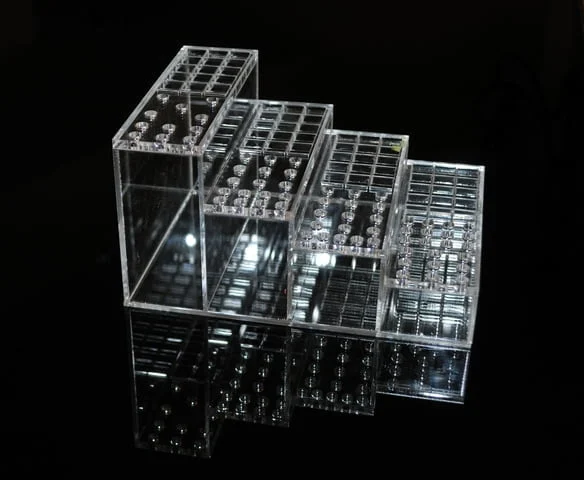

Optically Pure Award QualityFrom architectural signage to high-volume point-of-purchase displays, explore how manufacturers utilize Kern laser cutting technology.

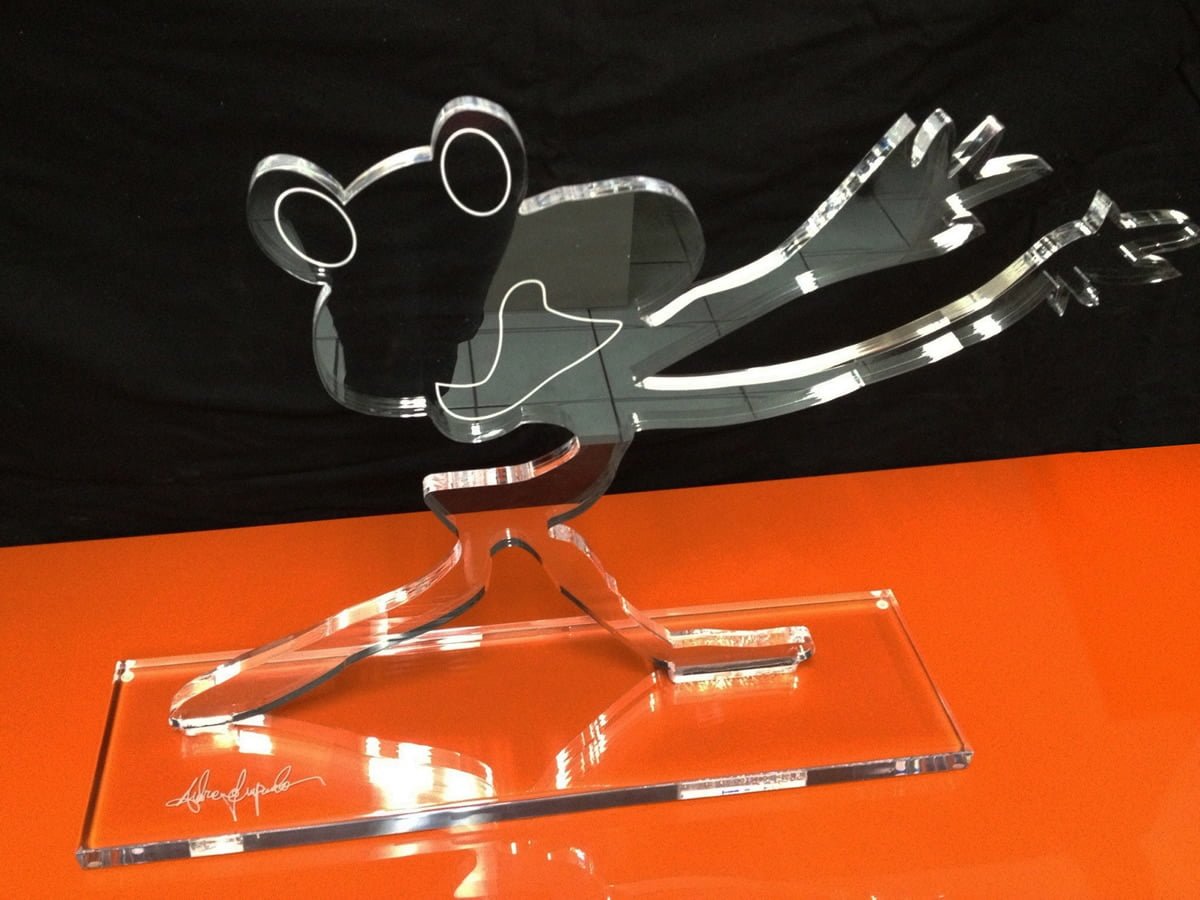

Intricate contour cutting and high-contrast frosted engraving on thick acrylic blocks.

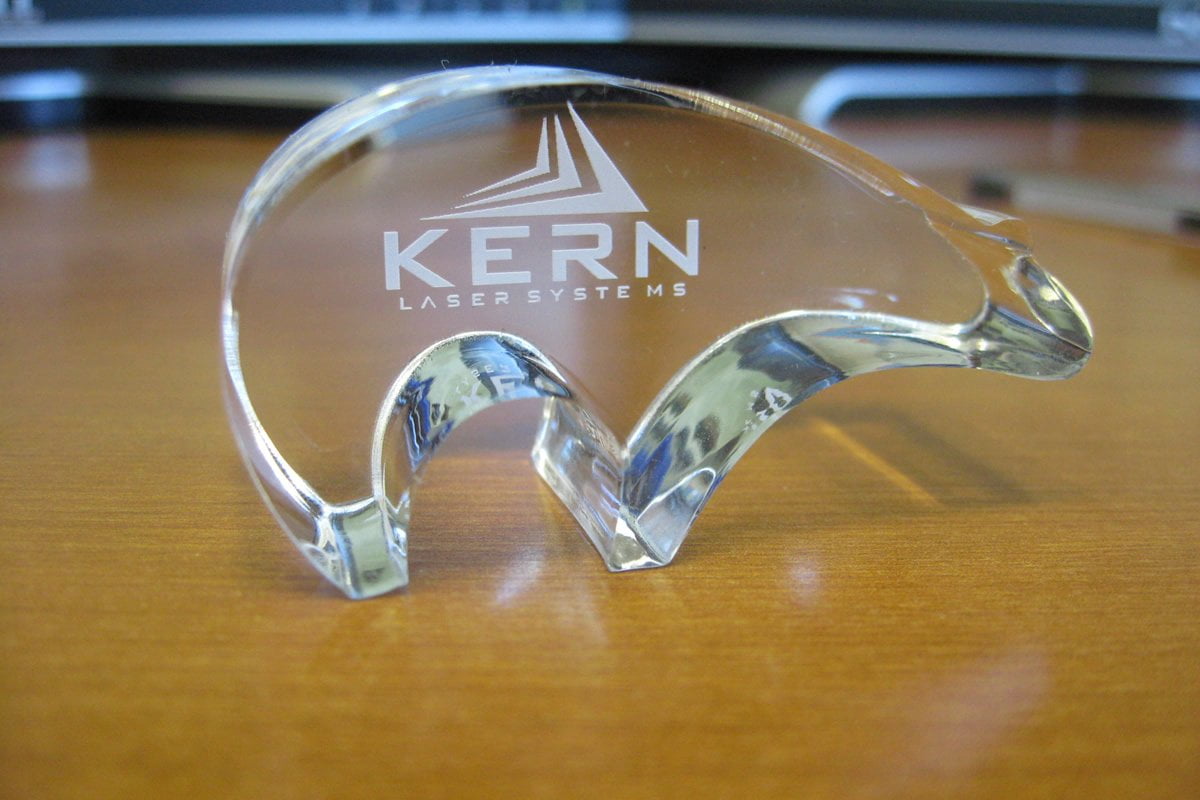

Flame-polished interlocking acrylic components assembled straight from the laser bed.

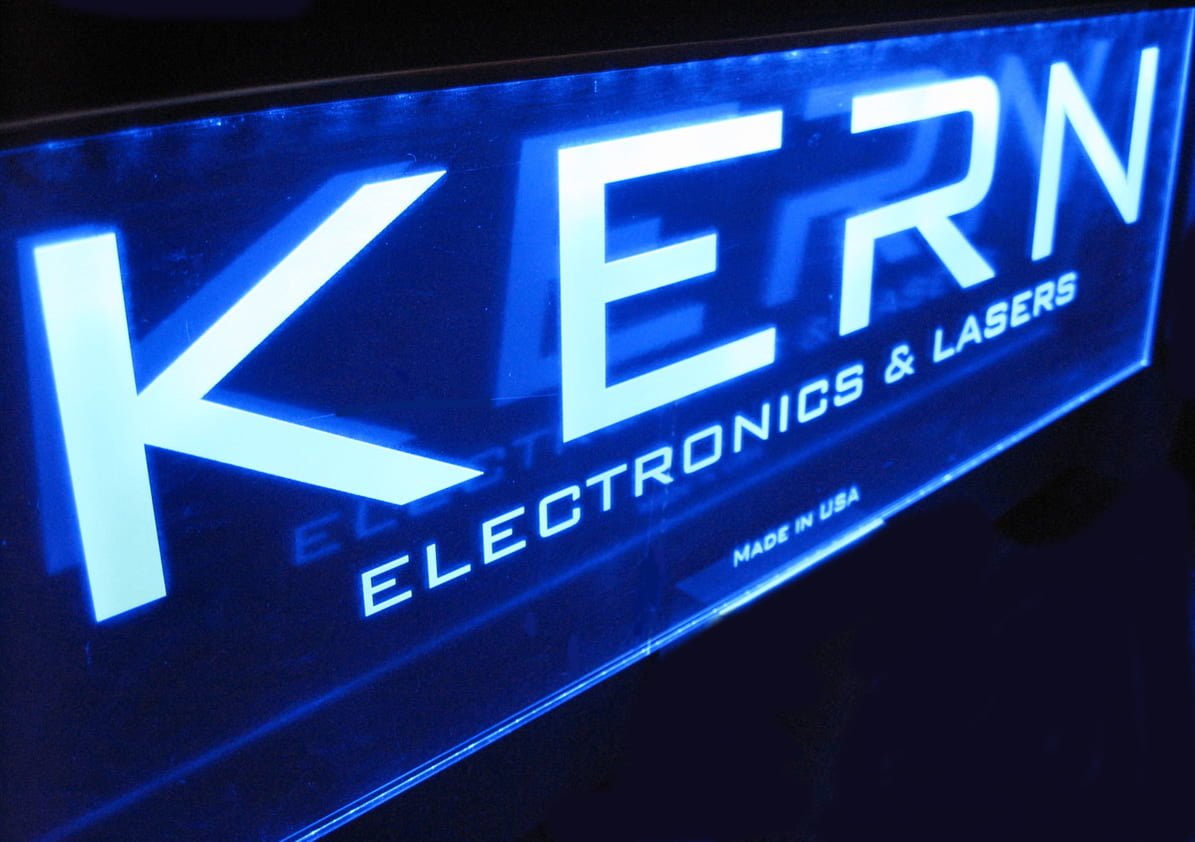

Uniform light distribution through precise surface etching and optically pure cut borders.

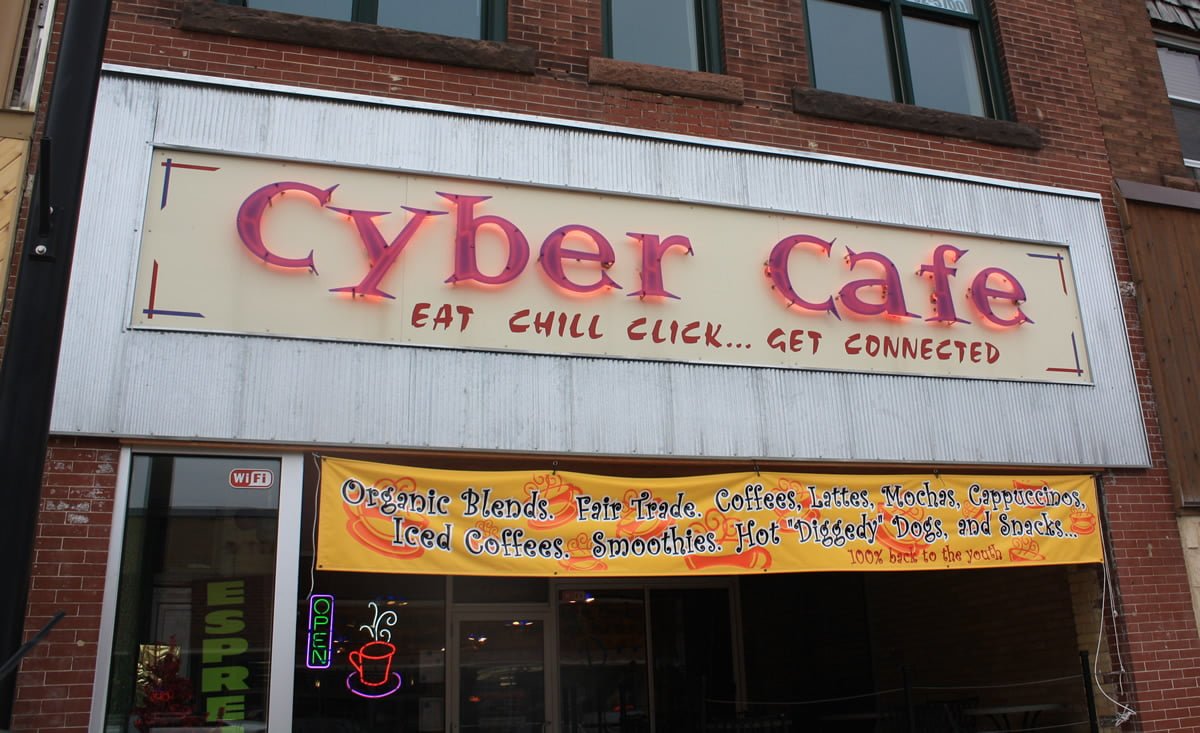

Sharp 90-degree internal corners and dimensional lettering for commercial branding.
Achieving defect-free acrylic parts requires understanding fluid dynamics, assist air pressures, and bed reflection management. Kern engineers designed our machines to address these exact variables.
| Feature | Kern CO2 Laser System | Mechanical CNC Router |
|---|---|---|
| Edge Quality | Flame-polished in 1 pass | Rough cutter marks; manual polishing required |
| Tool Wear | Zero tool degradation | Frequent end-mill replacement & costs |
| Inside Corners | Sharp 90-degree angles | Restricted by bit radius |
| Part Holding | Vacuum downdraft table | Complex fixturing & hold-downs required |
| Sheet Yield | Tight nesting with 0.005" kerf | Wide gap required for router bit clearance |
Excessive localized air pressure on molten acrylic causes edge fogging and hazing. Kern's wide-orifice nozzles disperse low-pressure assist air evenly across the melt zone, allowing the acrylic to freeze with maximum optical transparency.
When the laser beam contacts a standard metal table, beam bounce-back creates unwanted tick marks on the underside of clear acrylic. Kern offers acrylic slat tables, paper honeycomb, and point-support spacers to completely remove flashback artifacts.
Select the optimal table size, laser power, and enclosure rating for your shop's production volume.
Open-bed platform ideal for processing full 4x8 ft and 5x10 ft acrylic sheets. Super-pulsed CO2 sources up to 800W easily cut thick acrylic in a single pass.
Fully enclosed production cell designed for busy shop floors and educational environments. Provides complete safety isolation while maintaining high processing speeds.
Compact format bed engineered with full industrial gantry dynamics. Delivers ultra-precise acrylic raster engraving and detailed prototype cutting in tight spaces.
Engineering answers regarding acrylic processing capabilities, speed, and tooling configuration.
Kern CO2 lasers melt and vaporize acrylic with extreme thermal precision, creating a smooth, flame-polished edge straight off the cutting table. This eliminates costly secondary manual flame polishing, flame buffing, or router tooling marks.
Fogging occurs when concentrated air pressure is directed onto molten acrylic edges. Using Kern wide-orifice assist gas nozzles distributes lower air pressure over a broader area, allowing the melted acrylic edge to solidify cleanly with optimal optical clarity.
Yes. Kern laser systems integrate with K-Vision registration camera software, which scans printed fiducials on acrylic panels and automatically compensates for graphic distortion, rotation, and scaling before cutting.
Depending on the laser power configuration (ranging from 150W up to 800W super-pulsed CO2), Kern laser systems cut acrylic thicknesses from 1/16" (1.5mm) up to 1" (25mm) and thicker in a single pass while retaining square, polished edge profiles.
Ship your specific acrylic sheet or PMMA samples to our application facility in Minnesota. Our engineers will perform test cuts, document optimal feed rates, and ship the finished samples back for your evaluation.
