Metal Cutting Package
Equips the system with a capacitive Z-axis height follower and high-pressure assist gas solenoid manifold for dross-free precision cutting of stainless steel, mild steel, brass, and aluminum.
Engineered & Built in Minnesota, USA Synchronized Dual-Gantry Technology 3-Year Warranty on CO2 Laser Sources Worldwide Technical Support & Field Service
High-Production Manufacturing
Double Production Throughput Without Increasing Machine Footprint

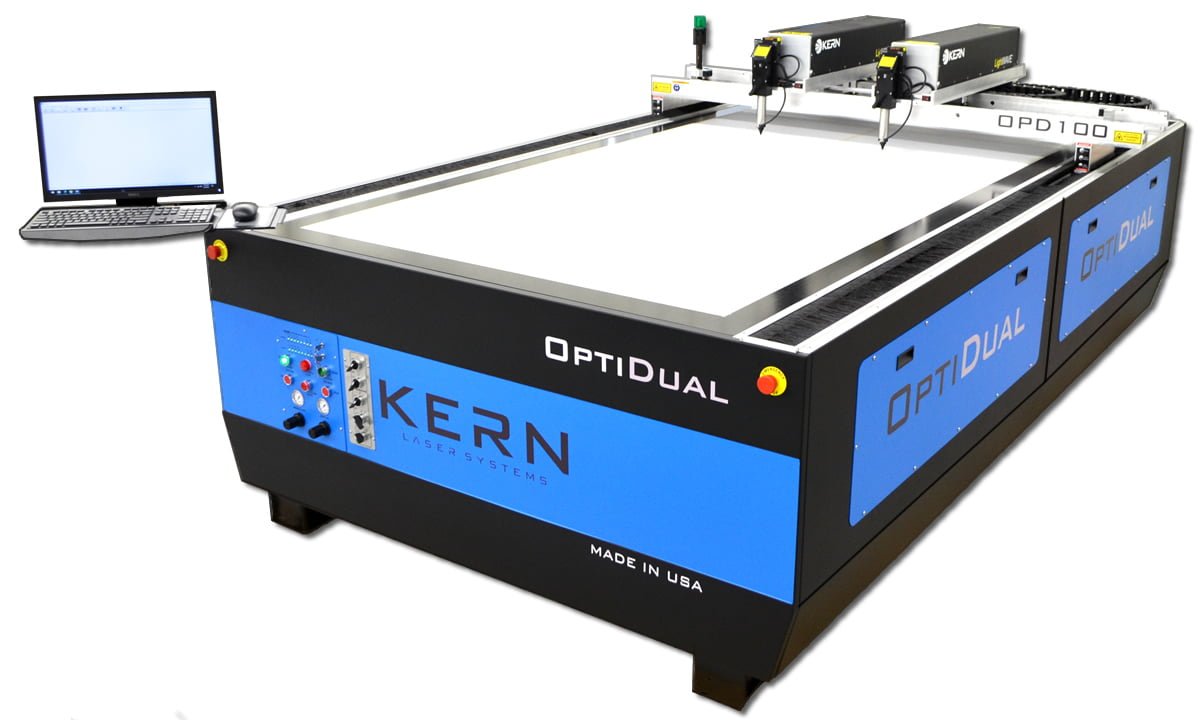

The OptiDual Laser System is specifically engineered for high-volume manufacturing environments requiring rapid component output and uncompromising edge quality. By mounting two synchronized laser cutting heads on a single rigid gantry, the OptiDual duplicates cutting operations in real time across large-format sheet stock.
Driven by Kern’s proprietary KCAM control software, the power output of both laser sources is dynamically balanced. This guarantees identical part accuracy, kerf width, and edge polish on every component across 24/7 manufacturing shifts.

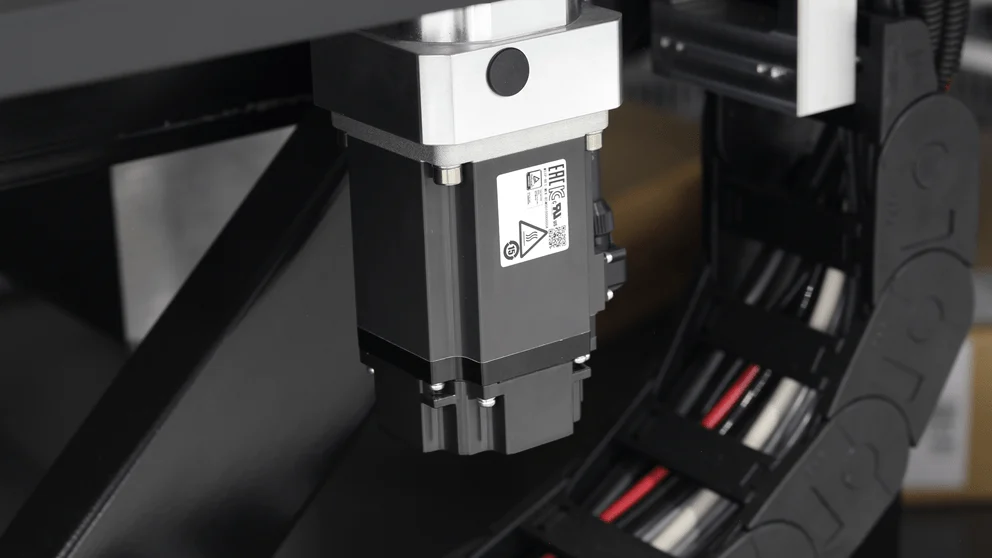

- HyperDual Motion Architecture: Heavy-duty rack-and-pinion Y-axis driven by dual high-torque servo motors paired with linear motor X-axis acceleration.
- Automated Power Balancing: Software-controlled wattage matching within single-percentage tolerances for identical multi-head part consistency.
- Industrial Heavy-Steel Weldment: One-piece stress-relieved steel chassis built to absorb vibration and sustain continuous operation for over a decade.
Engineering Specifications
Industrial Standards Driven by Precision Performance
Built for high-volume fabricators, the OptiDual platform combines extreme gantry speed with high repeatability across a wide spectrum of industrial materials.
0X Production Output
Synchronized dual heads double part throughput on a single bed layout.
±0.0" Positioning Accuracy
Precision ground linear rails maintain true mechanical accuracy across the bed.
0 W Power Per Head
Super-Pulsed CO2 laser options deliver superior edge quality with low HAZ.
0 Years Laser Source Warranty
In-house manufactured CO2 sources backed by total technical support.
System Configurations
Technical Specifications & Working Envelopes
Select your preferred unit system below to review machine dimensions, power ratings, electrical parameters, and table work envelopes.
Imperial Machine Parameters
| Laser Classification | Class 4 CO2 Laser System |
|---|---|
| Laser Power Options | 100 W to 400 W (Super-Pulsed per head) |
| Positioning Accuracy | ±0.001" (Mapped under controlled conditions) |
| Repeatability | ±0.0005" |
| Work Envelope (W × L) | 52" × 50" up to 86" × 144" |
| Machine Footprint (W × L × H) | 74" × 87" × 53" up to 112" × 181" × 53" |
| Standard Part Clearance | 3.0" (Custom gantry heights available) |
| Electrical Requirements | 230V / 1-Phase or 230V / 3-Phase |
Metric Machine Parameters
| Laser Classification | Class 4 CO2 Laser System |
|---|---|
| Laser Power Options | 100 W to 400 W (Super-Pulsed per head) |
| Positioning Accuracy | ±0.0254 mm (Mapped under controlled conditions) |
| Repeatability | ±0.0127 mm |
| Work Envelope (W × L) | 1320 mm × 1270 mm up to 2184 mm × 3657 mm |
| Machine Footprint (W × L × H) | 1880 × 2210 × 1346 mm up to 2845 × 4597 × 1346 mm |
| Standard Part Clearance | 76.2 mm (Custom gantry heights available) |
| Electrical Requirements | 230V / 1-Phase or 230V / 3-Phase |
Material Versatility
Comprehensive Cutting & Marking Capabilities
The OptiDual processes non-metallic materials out of the box and can be configured with specialized metal-cutting packages for hybrid industrial processing.
Cast Acrylic Extruded Acrylic Hardwoods Plywood & MDF PE / PU Foams Technical Textiles Leather Mild Steel Stainless Steel Aluminum Brass
| Material Grade | Laser Cutting | Laser Engraving / Marking | Recommended Configuration |
|---|---|---|---|
| Cast & Extruded Acrylic | High Speed / Flame Polished Edge | Raster & Vector Marking | Vacuum Honeycomb Bed + Air Assist |
| Hardwood & Structural Plywood | Deep Clean Pass / Low Char | Detailed Contrast Engraving | Down-draft Exhaust Table |
| PE, PU & Kaizen Foams | Sealed Non-Contact Cutting | Surface Pocketing | Multi-Zone Vacuum Table |
| Mild Steel & Stainless Steel | Dross-Free Metal Cut | High-Contrast Surface Mark | Metal Cutting Package + Capacitive Height Follower |
| Brass & Aluminum Sheet | Precision Narrow Kerf | Direct Surface Marking | High-Pressure Assist Gas (N2 / O2 / Shop Air) |
| Natural Stone & Marble | Non-Laserable Cut | High-Speed Etching | Standard Open Bed Setup |
Modular Industrial Options
Specialized Equipment Packages
Tailor your OptiDual platform to your exact production workflow with factory-engineered add-ons built directly into the machine frame and KCAM software.
K-Vision Camera Alignment
Nozzle-mounted optical camera system that automatically scans printed registration marks and adjusts cutting vectors to compensate for material stretch, distortion, or misalignment.
Multi-Zone Vacuum Bed
Splits the vacuum table into independently controlled processing zones. Allows operators to safely load and unload completed parts on one side while the laser cuts uninterrupted on the other.
Pipe & Tube Rotary
High-resolution servo-driven Chuck and Wheel rotary assemblies engineered for continuous rotational cutting and 360-degree radial laser engraving on cylindrical parts.
Industrial Fume Extraction
Heavy-duty multi-stage filtration systems and inline spark arrestors to remove particulate emissions and recirculate clean air inside the factory floor safely.
KCAM Laser Control Software
Proprietary software featuring automatic vector path optimization, tool kerf offset calculation, production time estimation, and color-coded job queueing.
Built-In Value
Standard Heavy-Duty Features Included
Every OptiDual laser cutting system ships fully assembled from our Minnesota plant with essential industrial components included as standard equipment.
Super-Pulsed CO2 Sources
100W to 400W in-house manufactured CO2 laser sources equipped with Super Pulse technology for crisp engraving detail and minimal heat impact.
Closed-Loop Water Chillers
Dedicated refrigeration chilling units maintain exact optical tube temperatures to extend gas life and ensure consistent power output across shifts.
Vacuum Blowers & Downdraft Bed
High-CFM blower package holds sheet goods flat against the heavy-duty aluminum honeycomb bed while pulling fumes safely away from optics.
UL-Certified Electrical Enclosure
Factory-wired electrical panel meeting strict UL safety codes. Fully interlocked safety switches, E-stop triggers, and 5-second delay safety keys included.
Workstation PC & Monitor Arm
Industrial control station pre-installed with KCAM control software, graphic suites, monitor arm, and direct network interfacing.
Factory Operator Training
Comprehensive 2-day hands-on training program at our Minnesota factory covering system operation, maintenance schedules, and process optimization.
Proven Reliability
Trusted by Manufacturers Worldwide
Discover why industrial fabricators and high-volume production facilities rely on Kern Laser Systems for multi-shift production stability.
“Kern builds some of the finest machinery I have encountered in my 30 years in business. Their build quality, attention to mechanical alignment, and system stability are outstanding. Operators can run production immediately with total confidence.”
“Investing in our Kern platform was a turning point for our production capacity. The engineering rigor, factory responsiveness, and heavy chassis design make it a true industrial asset on our factory floor.”
“Kern’s technical support team provides the highest level of service in the industry. From cut parameter guidance on thick materials to remote diagnostics, they keep our lines running smoothly without unexpected downtime.”
Procurement & Technical FAQ
Frequently Asked Questions
Answers to standard technical, operational, and export procurement questions regarding the OptiDual platform.
The OptiDual platform integrates two or three laser cutting heads onto a single gantry assembly. The secondary laser head is linked to the primary head via an adjustable crossbar. As the master head cuts a path, the secondary head duplicates the operation simultaneously on adjacent stock, doubling component throughput without requiring additional operators or machine footprint.
Kern's KCAM control software includes dynamic power-matching algorithms. Operators can fine-tune output wattage for each individual laser source down to single-percentage increments, guaranteeing identical cut depth, edge polish, and kerf width across all simultaneously processed parts.
OptiDual systems process cast and extruded acrylic, hardwoods, plywood, MDF, PE/PU foams, technical textiles, gaskets, leather, and stone. With the optional metal cutting assembly and capacitive height follower, it also cuts stainless steel, mild steel, aluminum, and brass.
Kern super-pulsed CO2 laser sources carry an industry-leading 3-year factory warranty. Global export customers receive direct technical support from US factory engineers via remote desktop diagnostics, worldwide replacement parts dispatch, and localized field service networks.
