Advanced Industrial 4th-Axis Technology

Pipe & Tube Laser Rotary System

Heavy-duty, servo-driven rotary attachments for 360° precision laser cutting and engraving of cylindrical metal and non-metal parts.

High-Torque Closed-Loop Servo Drive Fits Up to 6" Pipe Diameters Seamless KCAM Software Integration Made in Minnesota, USA
Precision Engineering

High-Accuracy 4th-Axis Rotary Solutions for Industrial Lasers

Kern Laser Systems offers specialized Pipe and Tube Rotary attachments designed to expand flatbed laser systems into high-efficiency 4th-axis rotary processing centers. Built to meet stringent global manufacturing standards, these systems process metal pipes, stainless tubing, wooden posts, acrylic cylinders, and composite rods with smooth movement and zero backlash.

Powered by industrial-grade, high-resolution servo motors synchronized directly with KCAM Laser Control Software, operators can effortlessly execute complex rotary cutouts, slotting, perforations, and 360-degree wrapped vector artwork in a single automated step.

  • High Positional Accuracy: Direct closed-loop servo drive maintains tight concentricity tolerances even at continuous production speeds.
  • Dual Configuration Flexibility: Choose between Chuck-type rigid clamping or Wheel-type continuous roller mechanisms based on workpiece geometry.
  • Fast Setup & Quick Changeover: Modular design allows rapid mounting onto standard open-bed and enclosed Kern CO2 or Fiber laser platforms.

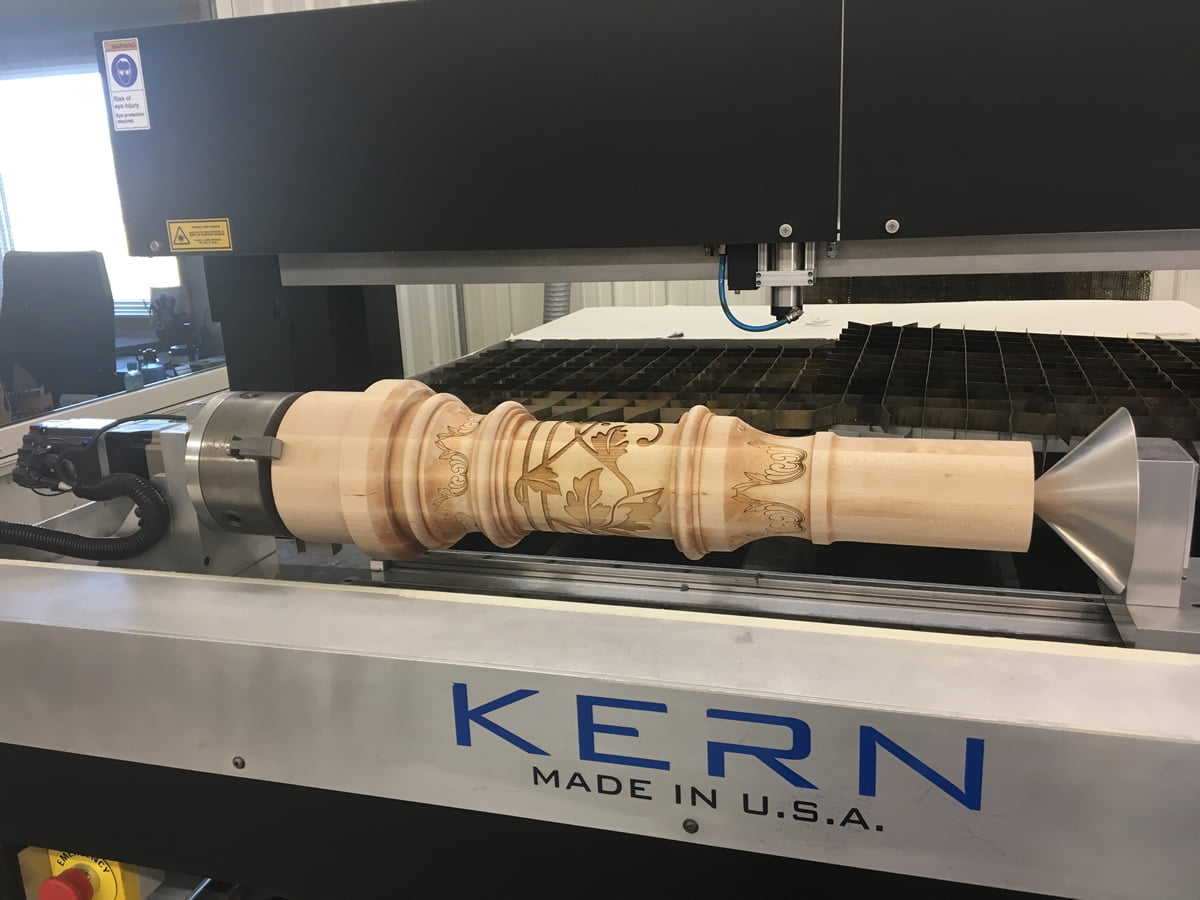

Kern Pipe and Tube Rotary chuck mechanism holding a steel pipe
System Selection

Two Specialized Rotary Designs for Diverse Industrial Applications

Matching the clamping mechanism to your product structure ensures maximum structural stability, optimal focal distance control, and flawless processing quality.

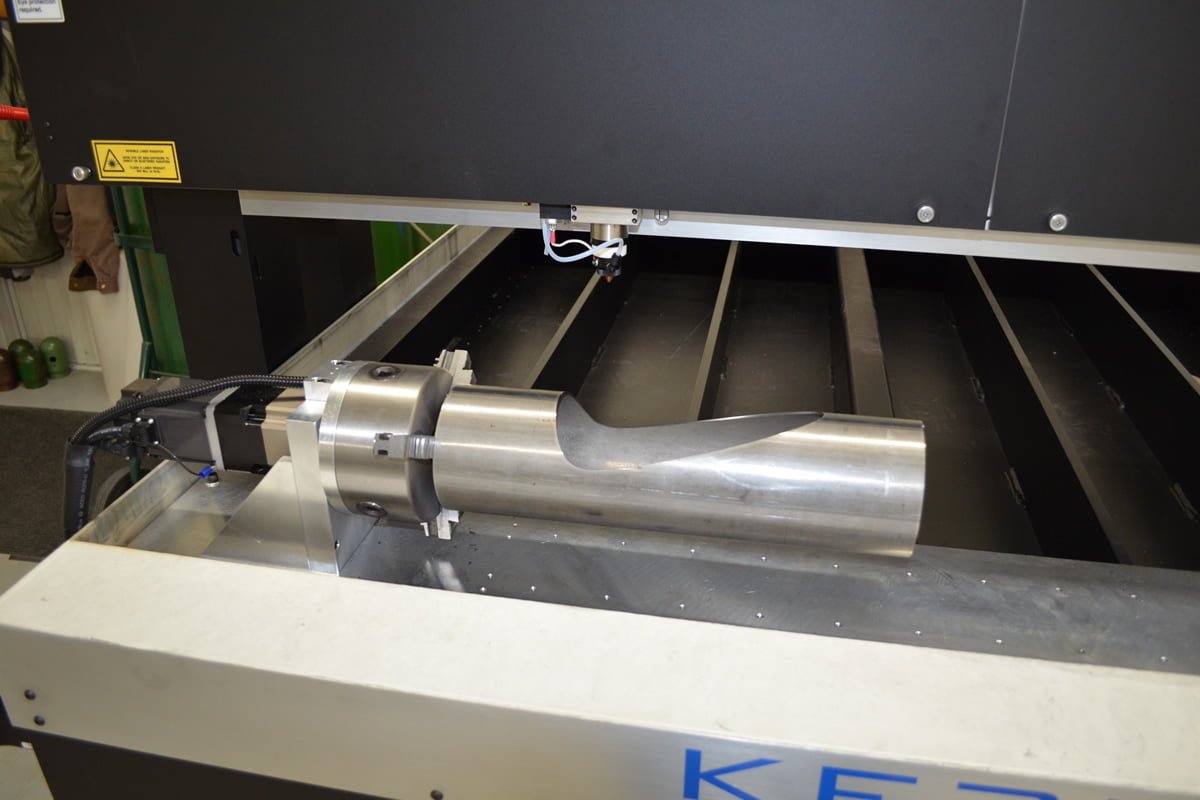

Metal pipe being laser cut with Chuck Rotary attachment
Heavy Industrial Cutting

Chuck Rotary Attachment

The Chuck Rotary setup integrates a heavy-duty 3-jaw self-centering lathe chuck combined with a rail-mounted adjustable tailstock. The tailstock applies axial force to hold long pipe sections securely on-center while spalled cuts or intricate slot profiles are machined.

  • Max Outer Diameter: Up to 6.0" (152 mm)
  • Ideal for structural steel tubing, automotive exhaust components, tubular filters, and pipe joints.
  • High clamping force withstands gas assist pressure up to 250 PSI during metal piercing.

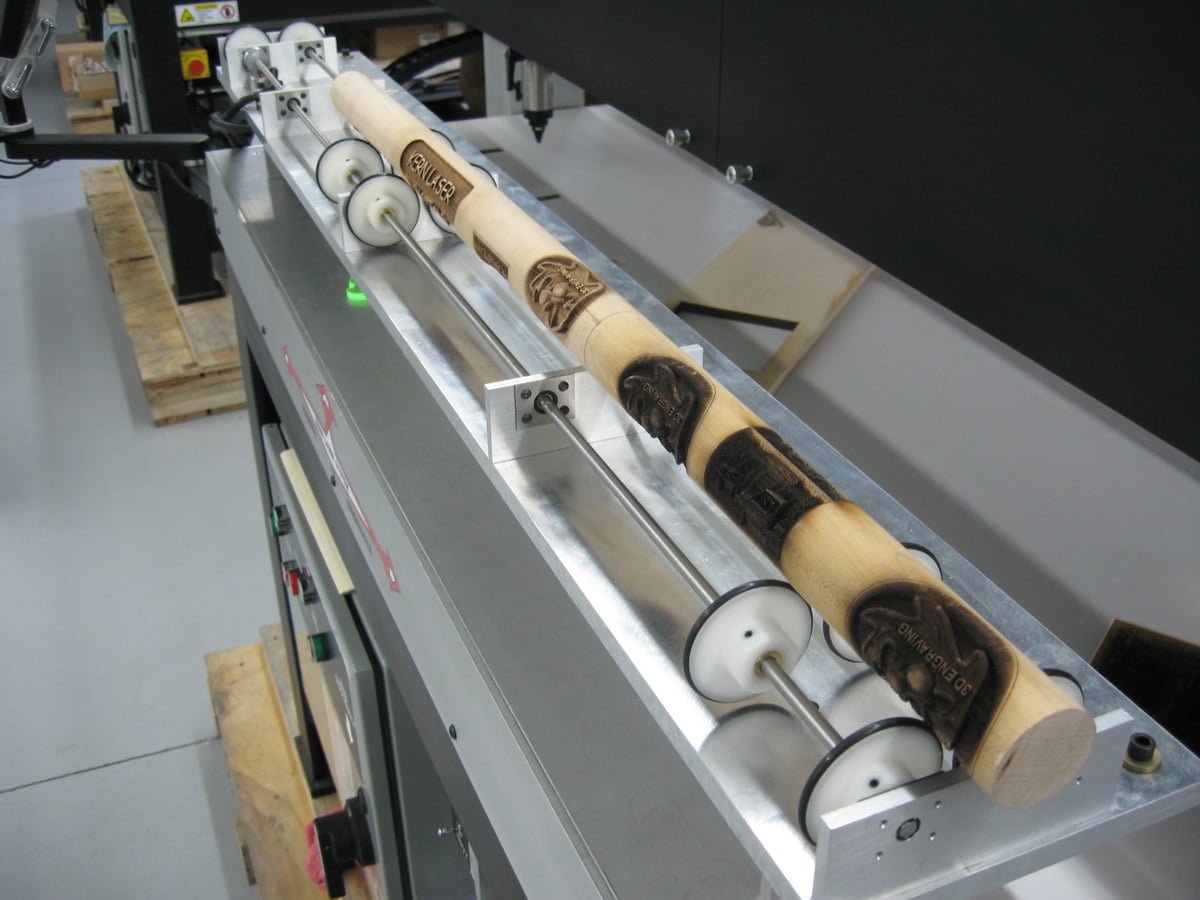

Continuous wheel rotary laser engraving system
360° Wrap Engraving

Wheel Rotary Attachment

The Wheel Rotary setup utilizes heavy-duty polyurethane roller wheels to friction-spin cylindrical items continuously. Because there are no chuck jaws or tailstock frames obstructing the ends of the object, the laser nozzle enjoys unimpeded access to the full edge-to-edge surface.

  • Adjustable roller spacing for small to large diameter items.
  • Ideal for 360° graphic wrapping on flashlights, wooden posts, walking canes, and aluminum housings.
  • Non-marring roller surfaces prevent scratches on polished, painted, or anodized finishes.
Engineering Specifications

Industrial Performance Specifications

Review technical capabilities of Kern rotary attachments engineered for global industrial buyers and factory integration.

Technical Parameter Chuck Rotary System Wheel Rotary System
Primary Function Industrial Tube & Pipe Cutting / Slotting 360° Continuous Surface Laser Engraving & Marking
Max Workpiece Outer Diameter 6.0 in (152 mm) Variable (Adjustable Roller Bed)
Drive Mechanism High-Resolution Servo Motor & Gearbox Direct Servo-Driven Friction Rollers
Rotary Positional Accuracy ±0.002" (±0.05 mm) ±0.003" (±0.08 mm)
Workpiece Holding Method 3-Jaw Lathe Chuck + Adjustable Tailstock Multi-Roller Friction Bed (Obstruction-Free Ends)
Laser Source Compatibility Fiber Lasers (1kW - 3kW) & CO2 (150W - 800W) CO2 Super-Pulsed Laser Sources (150W - 400W)
Supported Material Types Stainless Steel, Carbon Steel, Aluminum, Brass, Copper Wood, Acrylic, Anodized Metals, Glass, Composites
Control System Interface KCAM Software Native 4th-Axis Module KCAM Software Native 4th-Axis Module
Applications & Proven Output

Real-World Production Samples

From precision industrial metal tubing to detailed consumer product branding, explore what Kern rotary attachments deliver on the factory floor.

Large Format Laser Cutter and Rotary Engraving System

Large Format 4-Axis Setup

Chuck Rotary Setup with Pipe Clamping

Chuck Rotary Pipe Clamping

Wheel Rotary Laser Engraving Unit

Non-Marring Wheel Rotary

Precision Metal Tube Laser Cut Result

Precision Cut Metal Pipe

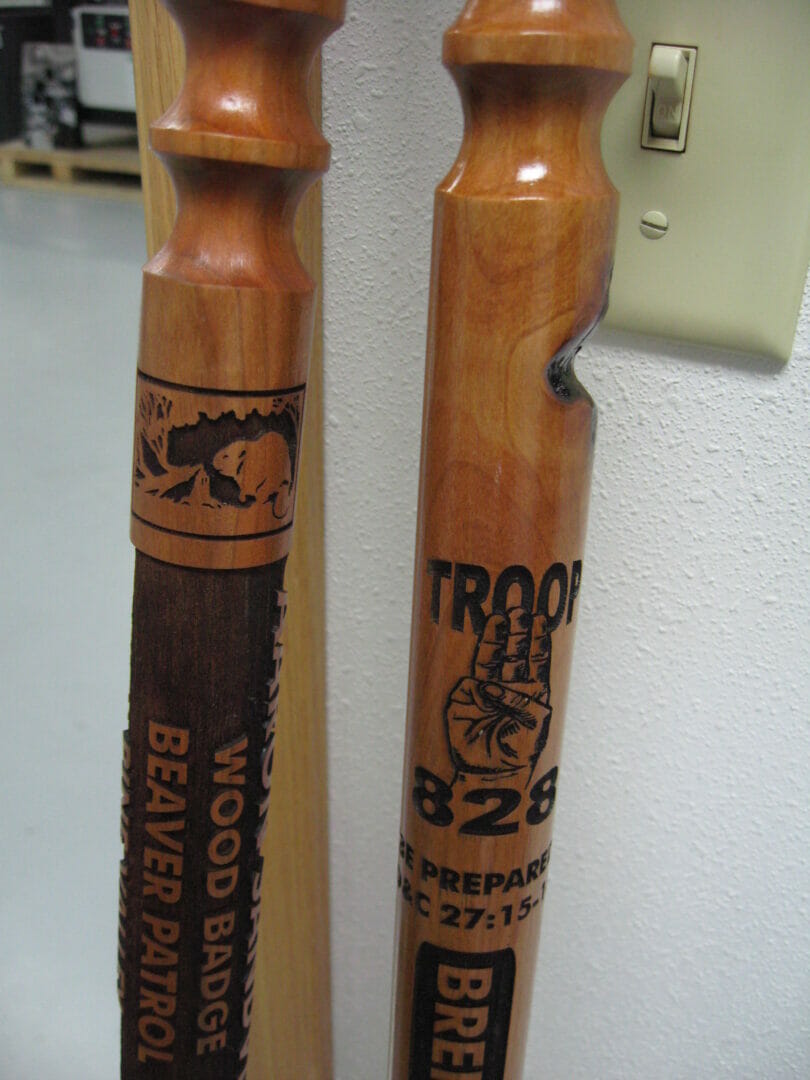

360 degree wood post engraving sample

360° Wrapped Wood Engraving

Buyer Questions

Frequently Asked Questions for Global Procurement

Technical guidance for machinery importers, OEM partners, and engineering teams.

The industrial Chuck Rotary setup accommodates metal pipes and round stock up to 6 inches (152 mm) in outer diameter. The adjustable tailstock slides along a heavy-duty rail bed to handle different length workpieces seamlessly.

The Chuck Rotary uses a self-centering 3-jaw lathe chuck and adjustable tailstock for heavy-duty metal tube cutting and rigid clamping under high gas pressure. The Wheel Rotary utilizes precision rubberized roller wheels to rotate lightweight cylindrical objects continuously without clamping obstruction, ideal for 360° continuous graphic engraving.

Yes. Kern rotary systems seamlessly interface with our OptiFlex, LaserCELL, FiberCELL, and Micro laser platforms. Drive commands and step pulse calibrations are directly handled within KCAM control software for accurate axis indexing.

Kern rotary attachments feature quick-disconnect electrical harnesses and rapid mounting brackets. Transitioning from flat sheet cutting mode to rotary pipe processing typically takes less than 10 minutes for trained factory technicians.

Global Support & Technical Consultation

Upgrade Your Production with 4th-Axis Rotary Power

Send us your tube samples or technical drawings. Our application team will process test cuts and provide detailed cycle time analysis tailored to your manufacturing requirements.

Inquire Now
