High-Yield CO2 Laser Systems for Solid Wood, Plywood & MDF
Engineered for high-volume manufacturing environments, Kern’s CO2 laser systems cut and engrave a wide spectrum of natural wood species and engineered timber products. By combining high-power super-pulsed laser sources (150W to 800W) with rigid industrial motion platforms, manufacturers achieve clean cut edges, zero tool-deflection, and high-speed 3D raster engraving with sharp detail.
Full Sheet Processing
Accommodate 4x8 ft and 5x10 ft full sheet goods with integrated downdraft vacuum tables. Material stays flat while fumes and airborne micro-particles are actively evacuated.
- Zero mechanical clamping required
- Pass-through table configurations
- Consistent focus depth across full bed
3D Relief & Grayscale Engraving
KCAM software translates true 256-level (8-bit) grayscale files directly into 256 distinct laser power outputs for smooth relief carving and dimensional texture.
- High-resolution 3D depth control
- Array-multiplication on X-axis
- Minimal charring on light hardwoods
Tight Kerf & Minimum Waste
Laser kerf widths as low as 0.005” enable tight nesting of intricate components, dramatically reducing timber raw material waste compared to standard CNC router bits.
- Square internal corners
- No mechanical blade wear or maintenance
- Immediate cut-to-assembly precision
Supported Wood Species & Industrial Applications
Our heavy-duty laser platforms deliver repeatable edge quality across diverse density profiles—from soft balsa to dense tropical hardwoods and resin-bonded MDF boards.
Compatible Substrates
- Hardwoods (Oak, Maple, Cherry, Walnut)
- Softwoods (Pine, Cedar, Fir, Spruce)
- Engineered Wood (MDF, Chipboard)
- Cabinet-Grade Plywood & Veneers
- Exotic Hardwoods & Natural Cork
Primary Industry Uses
- Architectural Screens & Wall Art

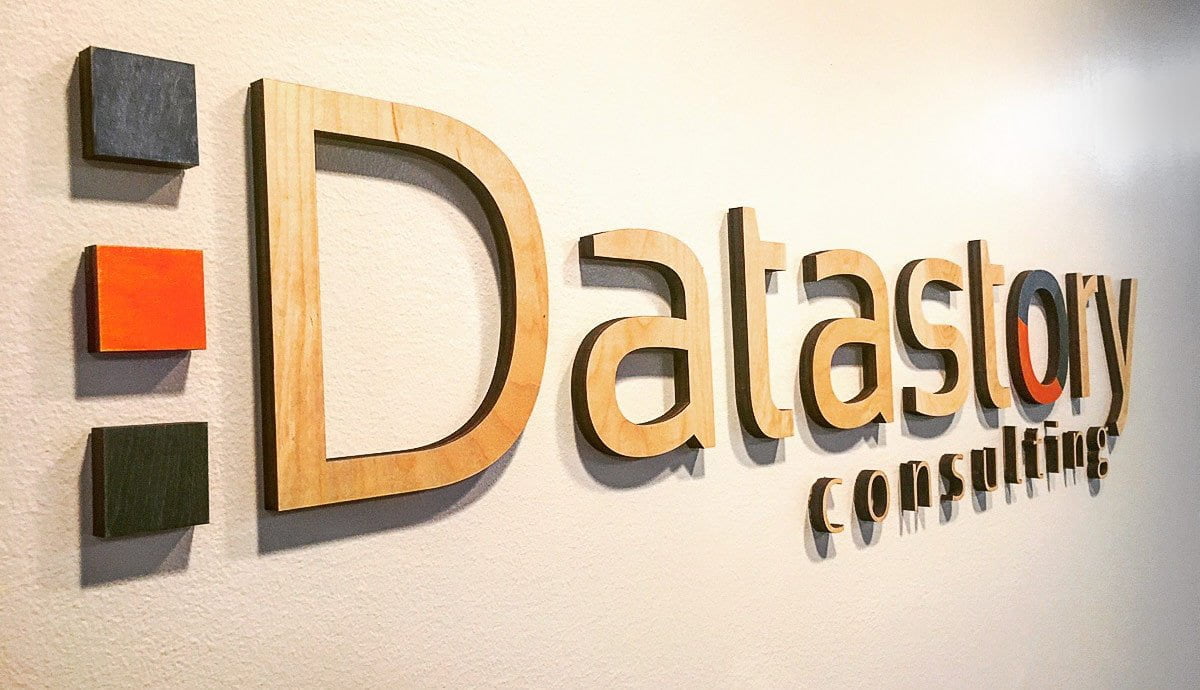

- Commercial & Exterior Wood Signage

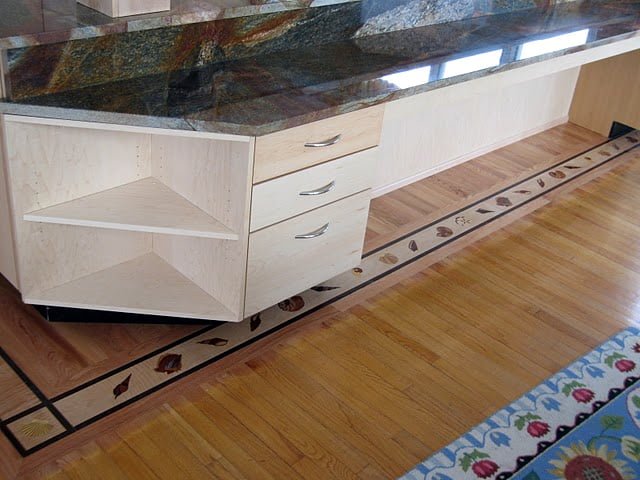

- Custom Furniture & Cabinet Inlays

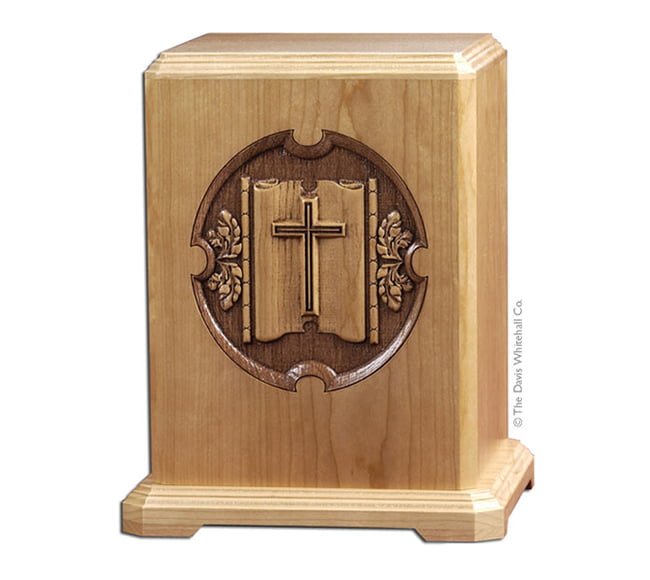

- Urns, Caskets & Keepsake Boxes

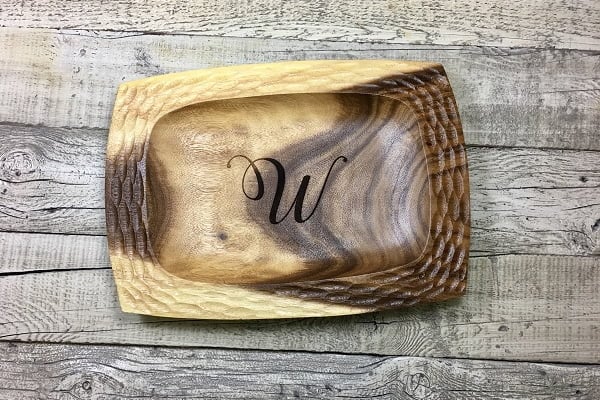

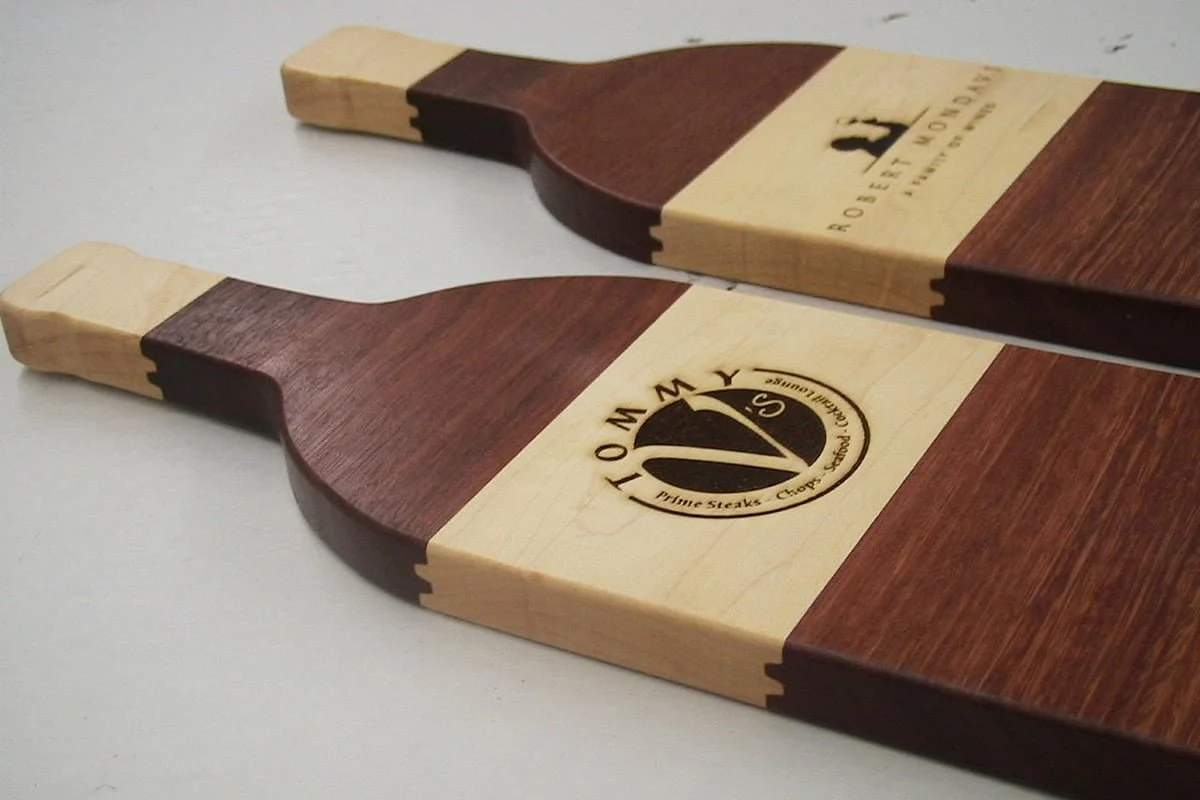

- Personalized Kitchenware & Boards
Laser vs CNC Router Advantages
- Higher Speed: Faster contour cutting on thin to medium panels
- Intricate Detail: Zero tool radius limits on internal cutouts
- Clean Environment: Exhaust evacuations reduce free sawdust
- Dual Operation: Cut and engrave within a single job file

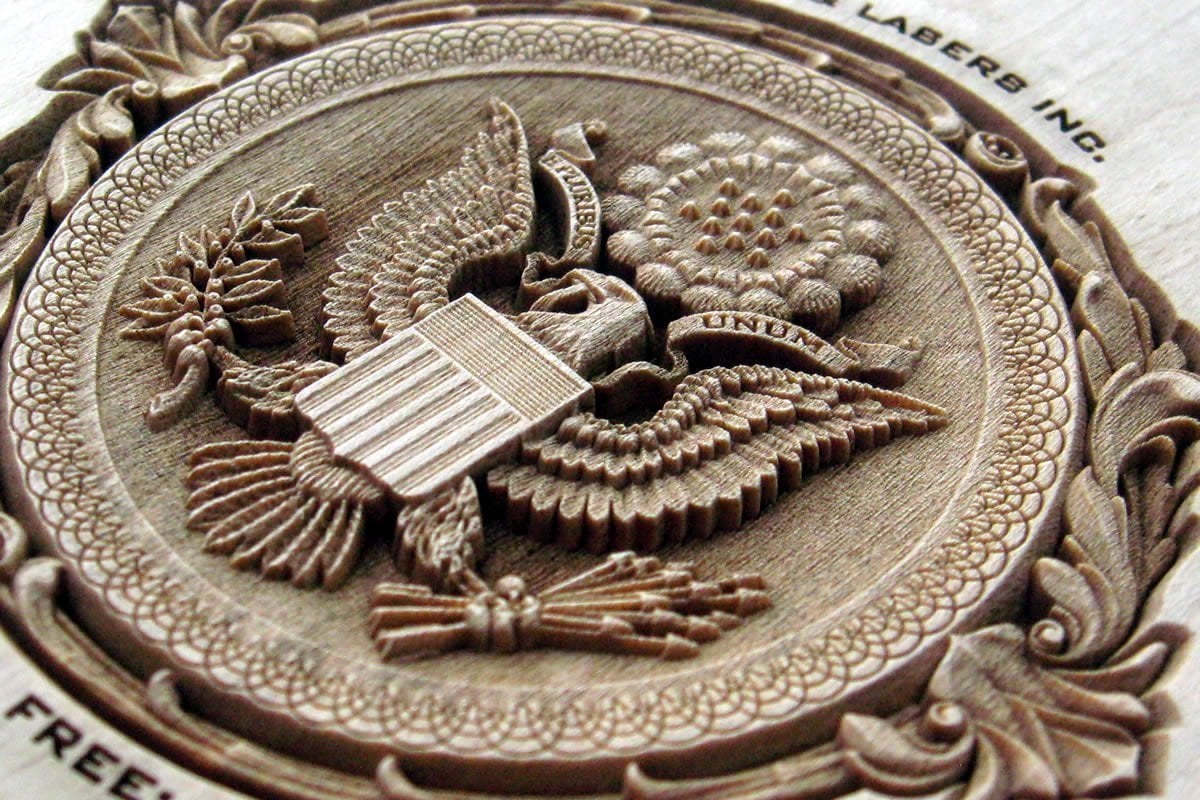

3D Laser Relief Carving on Hardwood & Veneers
Achieving realistic 3D laser engraving demands exact pulse control and precise power calibration. Kern CO2 lasers use native 8-bit grayscale bitmap interpretation to adjust beam output dynamically during high-speed raster movement.
Grayscale File Preparation
Engineers and artists format vector or raster graphics into 256-level grayscale bitmaps using standard CAD/CAM software. Lighter shades represent shallow cuts, while darker tones drive deeper laser penetration into the grain.
Array Production Efficiency
With KCAM multi-file arraying, identical 3D designs are multiplied across the gantry. The laser head scans the entire width of the machine in a continuous pass, finishing multiple parts simultaneously for maximum hourly throughput.
Fume & Debris Management
High-volume blower blower setups pull smoke and carbon residue straight down through the vacuum grid or into air filtration systems, keeping wood faces clear of heavy smoke staining.

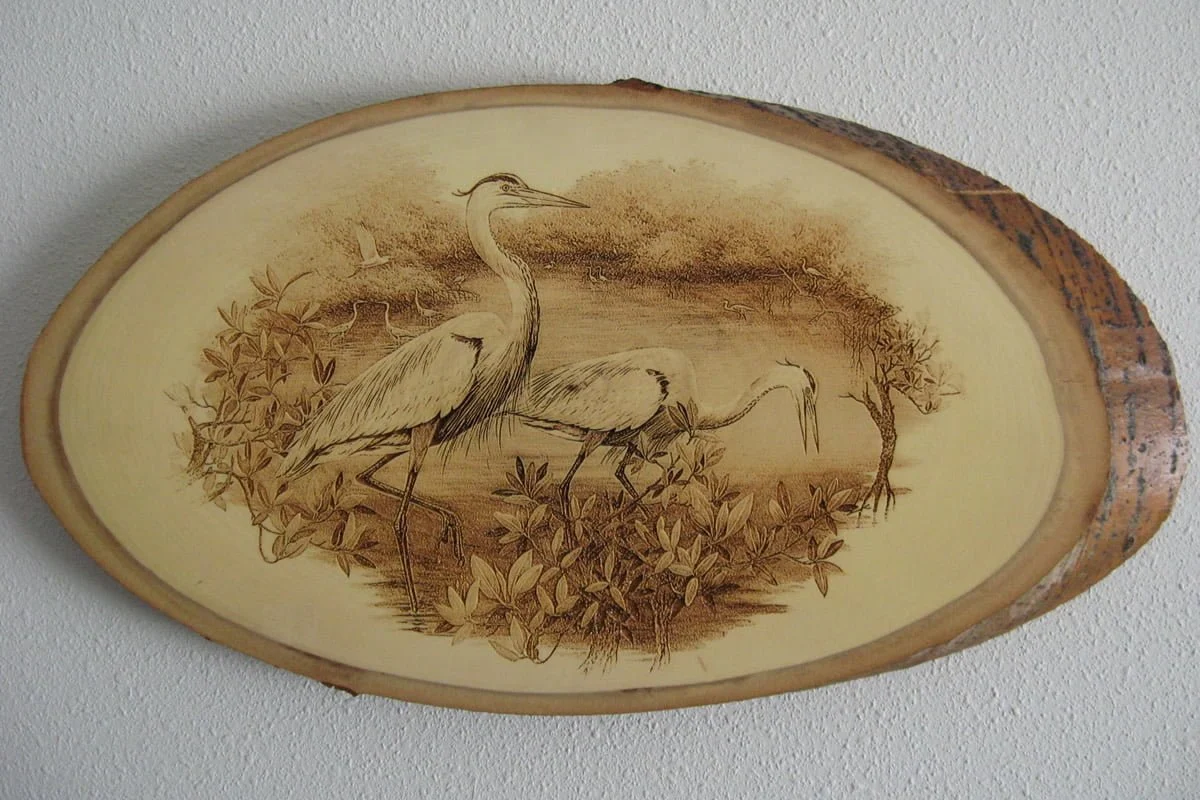

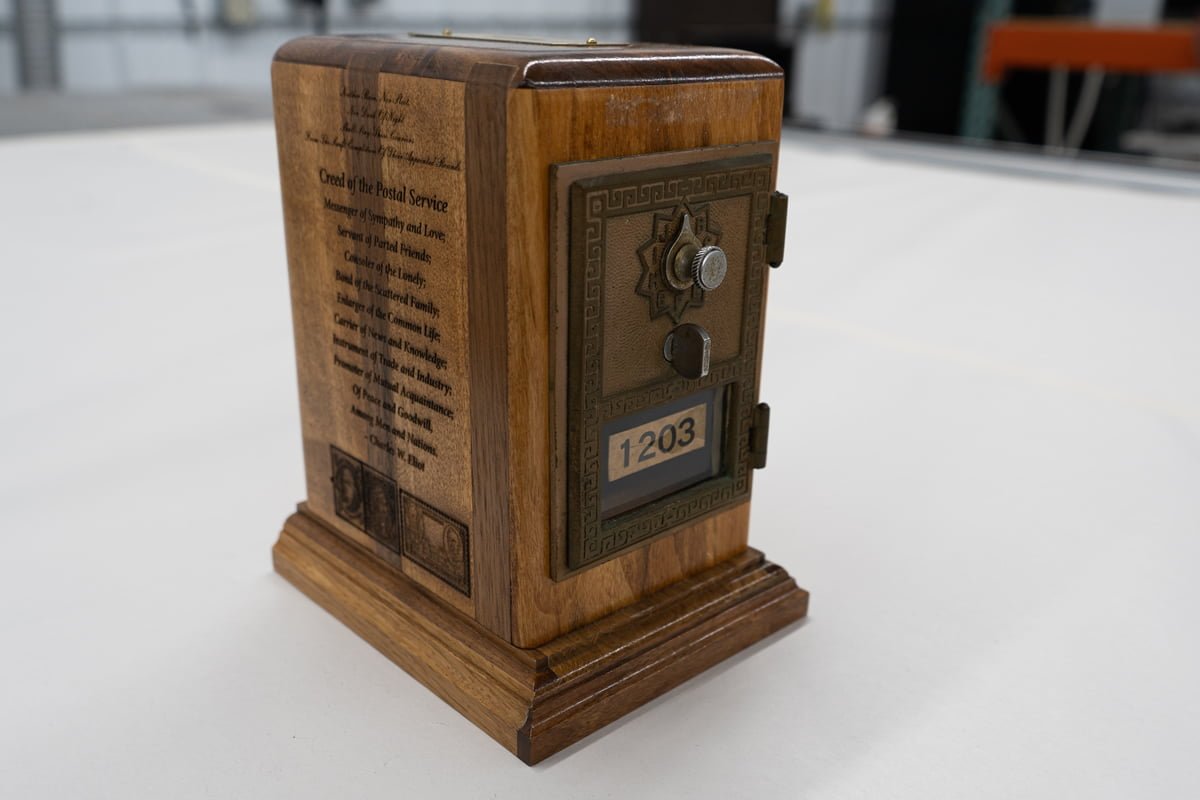

Wood Laser Processing Photo Gallery
Machine Specifications for Wood Fabrication
Review standard parameters for Kern industrial laser machines optimized for cutting and engraving wood products.
| Laser System Platform | Available Work Bed Sizes | CO2 Laser Power Range | Max Cutting Thickness (Wood) | Primary Feature |
|---|---|---|---|---|
| OptiFlex | 52" x 50" to 80" x 120" (5x10 ft) | 150W – 800W Super-Pulsed | Up to 1.25" (32 mm) Solid Wood | Open-bed flexibility, high-speed gantry |
| LaserCELL | 52" x 50" to 52" x 100" | 150W – 400W CO2 | Up to 1.0" (25 mm) Plywood / MDF | Fully enclosed Class 2 safety cabinet |
| EcoFlex | 52" x 50" to 80" x 120" | 150W – 400W CO2 | Up to 0.75" (19 mm) Timber | High value large-format production bed |
| OptiDual | 60" x 100" to 80" x 120" | Dual 150W to 400W Sources | Up to 1.0" (25 mm) Wood | Multi-head motion for 2x output speed |
Send Us Sample Material for Laser Qualification
Send your specific hardwood, MDF, or plywood samples directly to our Minnesota application lab. Our engineers will perform test cuts and 3D engraving, record cycle times, and return processed samples for quality inspection.
