Explore our wholesale-ready industrial Galvo laser inventory, featuring high-speed 2D/3D scan heads, CO2 RF metal tubes, fiber marking stations, and official control software.
Advanced 64-bit DLC control board hardware supporting multi-axis 3D dynamic focus, real-time dynamic relief carving, and automated process line integration.
High-precision 10.6µm wavelength marking unit with rotary fixture. Optimized for high-speed glass, crystal, bottle, and leather batch marking.

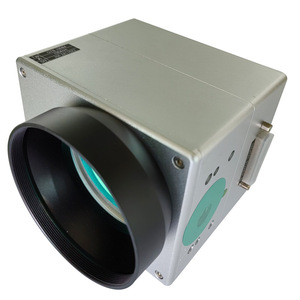

Industrial-grade 10mm beam aperture Galvanometer scan head featuring zero thermal drift, high repeatability (≤8µrad), and ultra-fast scanning vectors.

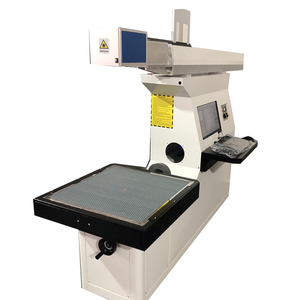

Heavy-duty 100W RECI glass or RF metal tube platform equipped with dynamic motorized Z-axis expansion optics for massive 600x600mm work fields.

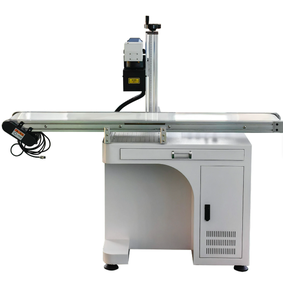

Compact air-cooled CNC marking system offering native vector file support (DXF/PLT/AI/DST) for high-accuracy metallic and coated surface treatment.

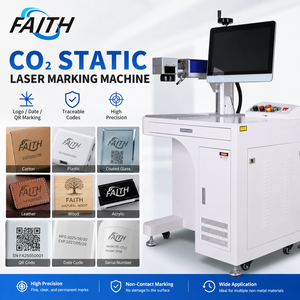

High-efficiency static CO2 production laser designed for round-the-clock organic material marking, deep wood etching, and architectural glass engraving.

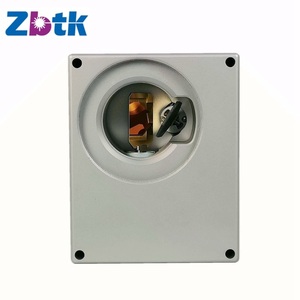

High-power 14mm optical input aperture scan head engineered for high-wattage fiber laser systems up to 100W. Features enhanced dielectric coating mirrors.

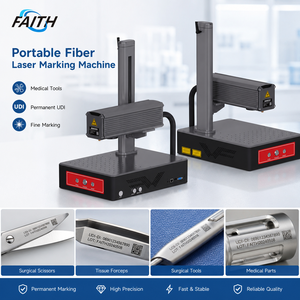

Workhorse fiber laser workstation equipped with Raycus/JPT sources for permanent, high-contrast barcodes, serials, and deep metal engraving.
An in-depth analysis of optical path calibration, closed-loop capacitive sensing, thermal drift mitigation, and dynamic focus beam expansion in modern industrial manufacturing.
Galvanometer laser processing represents the pinnacle of non-contact photonic manufacturing. Unlike traditional gantry-based Cartesian CNC systems that rely on mechanical ball screws or linear motors to shift the heavy cutting optical head, a Galvo Laser Scanner leverages ultra-low inertia optical mirrors attached to high-frequency galvanometer motors. This allows the laser beam to deflect at extreme vector speeds exceeding 10,000 millimeters per second while maintaining sub-micron accuracy.
For international buyers sourcing from China wholesale manufacturers, understanding the underlying optical physics is paramount. Premium Galvo scan heads utilize closed-loop capacitive sensor feedback loops. These sensors continuously monitor the rotor shaft position of the mirror motor, providing real-time positioning updates to the driver board every few microseconds. This eliminates hysteresis, counters friction, and compensates for mechanical resonance.
A critical engineering challenge in high-power Galvo processing is thermal drift control. As laser radiation (whether 1064nm Ytterbium fiber or 10.6µm CO2 gas) passes through optical mirrors and F-Theta field lenses, thermal absorption can cause minute expansions in mirror substrate coatings. Leading Chinese exporters utilize specialized silicon or beryllium mirror substrates coated with ultra-high reflectivity dielectric films (R > 99.8%), preventing thermal lens distortion and maintaining a constant Rayleigh length across 24/7 manufacturing cycles.
Choosing between flat-field F-Theta lens systems and dynamic motorized Z-axis expansion modules for large-scale and curved surface processing.
Utilizes an F-Theta field lens located after the X-Y scan mirrors. The F-Theta lens creates a flat image plane on a two-dimensional surface. Optimal for marking areas up to 300x300mm. Provides ultra-fine focal spot sizes down to 15 microns for detailed metal barcode and serial engraving.
Places a motorized dynamic beam expander lens before the X-Y mirrors. By dynamically shifting the focal position in real-time synchronized with software vector paths, systems like the Large Format 600*600 3D Galvo process 3D curved surfaces, stepped molds, and deep 3D relief carvings with zero image distortion.
Hardware-software synergy is essential. EZCAD3 control boards utilize bus architecture to synchronize 3-axis motion, laser power pulse modulation (PWM), and flying marking (MOTF) encoder feedback, ensuring uniform line width across complex 3D contours without hot spots or burning.
Comprehensive technical specification overview for industrial buyers comparing Fiber, CO2 RF, UV, and 3D Galvo platforms.
| Laser Platform | Wavelength | Laser Source Type | Max Marking Field | Primary Target Materials | Cooling System |
|---|---|---|---|---|---|
| Fiber Galvo Series | 1064 nm | Raycus / Max / IPG Fiber | 110x110mm to 300x300mm | Stainless Steel, Carbon Steel, Brass, Aluminum, ABS | Air-Cooled Integrated |
| CO2 RF Metal Tube Galvo | 10.6 µm / 9.3 µm | Coherent / Synrad / RECI RF | 300x300mm to 600x600mm | Wood, Acrylic, Leather, Glass, Organic Packaging | Air / Chiller Water Cooling |
| 3D Dynamic Focus CO2 | 10.6 µm | High Power RF / Glass Tube | 600x600mm Dynamic Field | Large Format Fabric, Curved Denim, Architectural Wood | Industrial Water Chiller |
| UV Cold Laser Galvo | 355 nm | DPSS Solid-State UV Source | 110x110mm to 175x175mm | Medical Plastics, Silicon Wafers, Crystal, HDPE, Glass | Precision Water Chiller |
| Marking-on-the-Fly (MOTF) | 1064nm / 10.6µm | Fiber / CO2 Sealed Source | Line Speed Dependent | Conveyor Bottling, Cable Extrusion, High-Speed Packaging | Air-Cooled Compact |
Key technological shifts reshaping the wholesale Galvo laser export market in China.
Traditional analog galvo driver boards are rapidly being replaced by 24-bit pure digital scan head drivers. Digital protocol communication drastically reduces electromagnetic interference (EMI) caused by neighboring industrial power supplies, ensuring ultra-clean vector engraving even at high pulse frequencies.
Wholesale procurement trends indicate a major shift from standard Q-switched fiber lasers to Master Oscillator Power Amplifier (MOPA) fiber sources. MOPA technology allows independent adjustment of pulse duration (from 2ns to 500ns) and repetition rate (up to 4000kHz). This capability enables high-contrast black marking on anodized aluminum and multi-color titanium surface oxidation without degrading material structural integrity.
Modern production lines demand zero-fixture operation. Integrated coaxial or offset CCD camera systems automatically locate randomly placed workpieces, calculate angle offset vectors, and adjust EZCAD vector software parameters dynamically before laser firing. This dramatically lowers labor costs in high-volume export packaging.
Direct manufacturer capabilities, stringent quality assurance standards, and turnkey international exporter support.
Every galvanometer scan head and beam expander optic is mounted and aligned inside Class 10,000 dust-free cleanrooms. This prevents micro-dust contamination on dielectric coatings, extending lens lifespans under high laser thermal load.
Before shipment, all laser machines undergo rigorous continuous stress testing. Optical power output stability, galvo scan drift, and thermal dissipation are logged automatically to verify conformity with CE and FDA export standards.
We provide full structural, mechanical, and software customization. From custom chassis paint and private branding labels to specialized PLC SDK integration, our direct engineering team supports global distributors and machine builders.
Technical guidance for international buyers, plant engineers, and wholesale machinery importers.
A Gantry laser system moves the optical laser head physically using mechanical X-Y axes (belts or ball screws) over a fixed bed. It provides large work areas but is speed-limited (typically up to 500–2,000 mm/s). A Galvo laser system uses high-speed motorized mirrors to angle the beam through a lens stationary head, achieving speeds up to 12,000 mm/s. Galvo systems excel at high-speed vector marking, micro-perforation, barcode tagging, and rapid batch engraving.
The aperture size dictates the maximum incoming laser beam diameter your scan head can accept without beam clipping. A 10mm galvo scan head is standard for fiber marking machines up to 50W. A 14mm or 20mm scan head allows for larger beam expanders, delivering a tighter, denser focused spot size at longer focal lengths—ideal for high-wattage CO2 laser cutting, deep metal engraving, or high-power UV processing.
For high-speed marking and light cutting of thin paper, leather, or film, 30W to 60W RF CO2 lasers are sufficient. However, for deep wood engraving, thick denim distressing, or rapid acrylic cutting over large fields (such as 600x600mm), we recommend 100W, 150W, or higher super-pulsed glass/RF CO2 sources paired with a 3D Dynamic Focus System.
Yes. Our equipment supports Marking-On-The-Fly (MOTF) functionality. By pairing EZCAD3 or DLC hardware control cards with external rotary encoders and photoelectric sensor triggers, the Galvo scan head marks moving products on high-speed bottling, extrusion, or packaging lines without stopping the conveyor.
Our Galvo control software supports all major industrial vector and raster formats, including DXF, PLT, AI, DST, SVG, BMP, JPG, TIF, and PNG. Advanced features include automatic 1D/2D barcode generation (QR codes, DataMatrix, Code128), sequential serial number incrementation, and dynamic text database linking.
We provide a comprehensive factory warranty covering core optics and laser sources (up to 3 years depending on the source brand). Technical support is available 24/7 via remote desktop diagnostics, direct video consultations with optical engineers, and express global air dispatch for original factory replacement parts.
