Engineered to withstand ultra-high laser fluences, our CE-certified optical elements deliver high thermal stability, minimal absorption, and sub-nanometer wave-front precision.
In high-power laser manufacturing, optical components are not merely passive consumables—they are critical control surfaces that define beam quality factor (M²), focal shift behavior, and system reliability. As a premier CE-certified laser optics exporter and contract manufacturer, our production engineering aligns strictly with European Safety Standard EN 60825-1 and ISO 11553 guidelines.

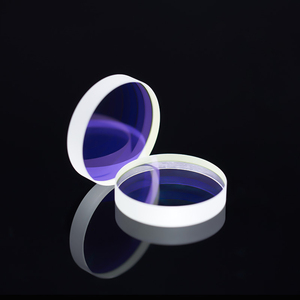

The foundation of low-absorption optical elements lies in material synthesis. For high-power fiber laser systems operating at 1064nm, synthetic Fused Silica (such as JGS1 or Suprasil 3001) is selected for its ultra-low hydroxyl (OH-) content. This minimizes internal absorption coefficients to less than 5 ppm/cm, preventing catastrophic thermal lensing when exposed to multikilowatt continuous-wave (CW) beam densities.
For CO2 laser applications operating at 10.6µm, chemical vapor deposition (CVD) Zinc Selenide (ZnSe) provides an extraordinarily broad transmission spectrum (0.6µm to 20µm). Our factory utilizes vacuum-deposited ZnSe with internal bulk absorption controlled below 0.0005 cm⁻¹, ensuring that focal spot alignment remains unchanged during multi-hour heavy-duty sheet metal cutting cycles.
Modern industrial processing demands optical coatings capable of enduring extreme optical power densities. Traditional electron-beam evaporative coatings often exhibit porous microstructures susceptible to moisture absorption and mechanical stress cracking. We utilize Ion-Beam Sputtering (IBS) and Plasma-Assisted Chemical Vapor Deposition (PACVD) technologies to yield dense, amorphous dielectric thin-film stacks.
| Substrate Material | Wavelength Range | Coating Type | Reflectance / Transmittance | Damage Threshold (LIDT) |
|---|---|---|---|---|
| JGS1 Fused Silica | 1064 nm (NIR) | AR/AR Thin Film IBS | R < 0.1% per surface | >15 J/cm² @ 10ns, 1064nm |
| CVD Zinc Selenide (ZnSe) | 10.6 µm (Far IR) | AR/AR Low Absorption Coating | T > 99.5% total lens | >5 MW/cm² CW power density |
| Optical Glass (BK7/K9) | 400 nm - 700 nm (VIS) | Multilayer Broadband AR | R < 0.5% average | >2 J/cm² @ 10ns pulsed |
| Single-Crystal Silicon (Si) | 10.6 µm Reflection | High-Reflectivity (HR) Gold/Silicone | R > 99.2% @ 10.6 µm | >10 kW/cm² CW mirror load |

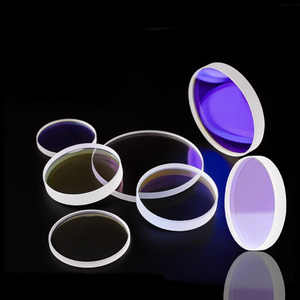

Every batch of export-grade optical protective windows, lenses, and mirrors undergoes standardized LIDT testing compliant with ISO 21254. By subjecting optics to single-shot S-on-1 and 1000-on-1 test protocols using calibrated Q-switched pulsed lasers, our quality engineering team guarantees that all products ship with verified safety margins, eliminating unexpected window fractures on customer assembly lines.
As global manufacturing shifts toward higher automation, ultra-precise micro-machining, and renewable energy component fabrication, optical supply chains are undergoing structural transformations.

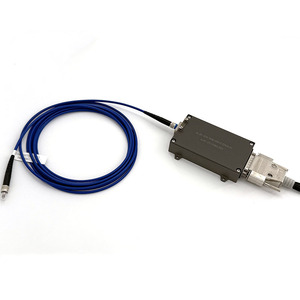

The explosive growth of electric vehicle (EV) battery manufacturing and copper hair-pin motor welding has accelerated demand for 450nm blue semiconductor laser modules and specialized blue-spectrum antireflective optics. High absorption in non-ferrous metals requires optical components resistant to intense blue light scattering and high thermal gradients.
Procurement teams are transitioning from static mechanical optics to smart optical heads integrated with inline scatter-light sensors, temperature monitors, and automated focus-shifters. Optical protective windows with integrated sensor connectors enable predictive maintenance before optical contamination breaches the internal laser cavity.
International regulatory authorities are tightening oversight on exported OEM laser equipment. Optical exporters must provide traceable certification for scattered radiation shieldings, optical density (OD) levels, and EN 60825-1 optical safety conformity to prevent port customs detentions and liability claims.
Backed by over four decades of combined optical engineering legacy, our manufacturing facilities operate under strict ISO 9001:2015 Quality Management Systems. We service OEM laser cutter builders, system integrators, military optronics assemblers, and university research facilities in more than 50 countries.
Unlike trading intermediaries, our factory maintains full control over every manufacturing milestone: CNC optical shaping, double-sided planetary polishing, ultrasonic multi-stage cleaning, IBS thin-film coating, and optical path assembly. This vertical integration allows us to offer custom dimensional tolerances down to +0.0/-0.05mm and thickness tolerances of ±0.02mm.
Expert answers addressing substrate selection, laser damage limits, coating longevity, and international compliance requirements for optical buyers.
Contact our optical engineering team today to review your technical drawings, request spectrophotometer test reports, or obtain competitive factory-direct pricing for wholesale export orders.
