Application of rubber mat tile pressing machine
Rubber tile making machine is mainly used for making the rubber ground tile, and it is also applied to vulcanizing other
rubber and plastic products and so on.

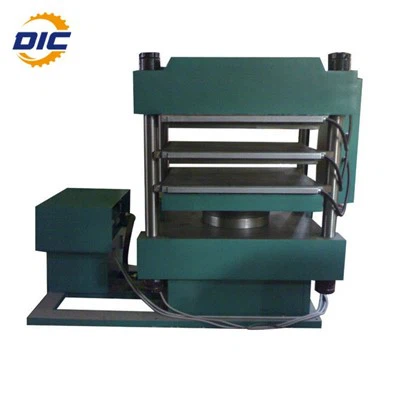

Structure of rubber flooring mats vulcanization moulding machine
1.The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron; hydraulic cylinder material is ductile cast iron; weldment between top and bottom crossing.
2. Put holder and oil cylinder at the side of plate, push off and resetting moulds are finished by oil cylinder moving when
using. There is not ejecting holder in manual ejecting mould structure, but still convenient when using.
3.Hydraulic system is consisting of unipump, operating valve and control system.
4.Electric system is consisting of oil pump motor and vulcanizing timing. When working pressure reach 22.1 Mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time. When reach the setting time, it will warn automatically, push TA button can remove warning.

Technical Data of rubber floor mat tile vulcanizing press machine
