Rubber Tire Recycling Machine

Your Professional Rubber Tire Recycling Machine Supplier





DEIICHEN MACHINERY is located in Jiangyin Zhutang Town, with Shanghai in the east, Suzhou in the south, and the Yangtze River in the north. It is located on the Shanghai-Nanjing Expressway known as the "Golden Passage" Near the exit, water and land transportation is very convenient.


Our factory specialized in producing Chemical & Pharmaceutical Machinery , Food & Beverage Machinery , Plastic & Rubber Processing Machinery,etc.




First 12345 Last 1/5

Why Choose Us


Production Market

  • Australian Market: More than 3 million US Dollars, built sales office and showroom in Melbourne
  • North America: Develop sales agent
  • Europe: Exported to France, Germany, Slovenia, Cyprus, Bulgaria, Russia
  • Middle East: Saudi Arabic, Iran, UAE, etc.
  • Asia: Japan, Vietnam, Singapore, Sri Lanka, India


Professional Technical Services
DEIICHEN technical engineers have many years experience for machinery manufacture. We accept the customized service to meet different customers' requirements. Our sales also accepted professional industry knowledge training, can communicate professionally with clients.



Production Equipment
Food Processing Machinery , Medicine Processing Machinery , Sportsground And Playground Machine , Rubber Processing Machinery , Tire Recycling Machinery , Rubber Product Machinery



Specification





Type

Tire Machine

Warranty

3 years

Power (kw)

55

Weight (kg)

15000

Place of origin

China

Video outgoing-inspection

Provided

Core components

PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

Tire machine type

Tire Recycling Machine

Key selling points

Long Service Life

Product name

Rubber crumb machinery

Type

Semi-auomatic shredded tire crumb

Function

Make 5-40 mesh rubber powder

Material

Waste tires and waste rubber

Using life

More than 15 years

Advantage

Energy saving 1/3

Capacity

200-3000kg/h

Color

Green, Blue, or customized

Certification

CE, ISO certificate

Marketing Type

Ordinary Product



Parameters





Model

JLSS1200

JLSS1500

JLSS1900

JLSS2600

Main shaft power

37kw*2

45 kw*2

90 kw*2

160 kw*2

Main shaft rotary speed

6-10rpm

6-10rpm

6-10rpm

6-10rpm

Working capacity

6-15t/h

8-18 t/h

10-25 t/h

15-35 t/h

Weight

7000kg

13000 kg

16000 kg

36500 kg

Discharging conveyor

Optional

Optional

Optional

Optional

Conveyor motor power

3kw

3kw

3kw

3kw

Detachable knife diameter

φ530-720

φ530-720

φ530-720

φ530-720

Detachable knife cutting head(adjustable)

1,2,3,6

1,2,3,6

1,2,3,6

1,2,3,6

Finished ships size

3-10cm

3-10cm

3-10cm

3-10cm

Feeding tank size(L*W)

1.4*1m

2*2m

2.3*2m

2.425*2.4m

Dimension (L*W*H)

3.2*2.1.9m

4*1.7*2.4m

8*2.5*2.4m

8.2*4*4.3m



Advantages of Rubber Tire Recycling Machine
productcate-1-1

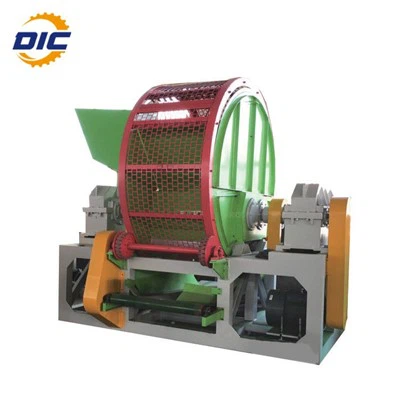

Double Shaft Waste Tire Recycling Shredder Machine
productcate-1-1
productcate-1-1

Improve resource utilization: Rubber tyre recycling machines can convert waste tyres into reusable resources, extracting materials such as rubber, steel wire and fibre from tyres for use in recycled rubber, high-value products or energy use, thus reducing the pollution of waste to the environment and promoting the recycling of resources. The environmental benefits are remarkable.


Remarkable environmental benefits: Through technical means such as crushing and thermal cracking, waste tyres are converted into reusable materials or energy, greatly reducing pollution to the environment. This not only helps to alleviate the pressure on landfills, but also reduces harmful gas emissions from burning waste tyres, protecting air quality and the ecological environment.


Significant economic benefits: The application of waste tyre treatment equipment not only reduces the production costs of enterprises, but also generates additional income for them through the sale of recycled products (e.g., rubber granules, cracking oil, etc.). In addition, the application of this kind of equipment also promotes the technological innovation and technological upgrading of enterprises, and enhances the market competitiveness.


High-efficiency separation technology: The waste tyre treatment equipment adopts high-efficiency separation technology, which can ensure the high-quality recovery of rubber oil, carbon black, steel wire and other products, and enhance the market value of renewable resources. The equipment is stable and safe, equipped with perfect protective measures, and can operate reliably for a long time.


Energy-saving design: The equipment adopts energy-saving design, low operating cost and long energy consumption life, which makes the investment return more considerable. The whole cracking process is carried out in a closed environment, minimising the leakage of pollutants. Through the recovery and full combustion of exhaust gases, it can supply heat for the whole production process and generate electricity, which not only eliminates the pollution of exhaust gases, but also saves fuel.




Types of Rubber Tire Recycling Machine

01/

Tyre cutting machine: This is the first part of waste tyre processing equipment, capable of quickly cutting waste tyres into small pieces for subsequent processing.

02/

Tyre shredder: Used to shred waste tyres into smaller pieces for further processing.

03/

Crusher: Used to crush waste tyres into smaller particles, usually used in conjunction with the shredder.

04/

Grinder: Used to further grind the crushed tyre particles into finer powder, commonly used in the production of rubber powder.

05/

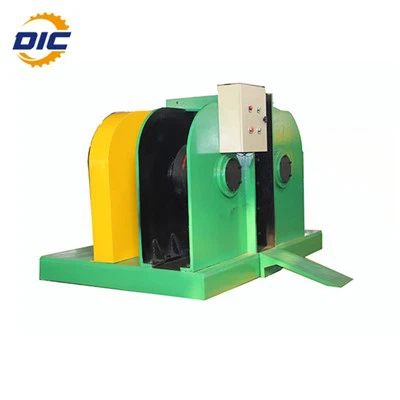

Steel wire separator: Used to separate the steel wire from the crushed tyre to achieve the separation of steel wire and rubber.

06/

Vibrating screen: Used to screen rubber particles of different sizes to ensure product quality.

07/

Fibre sorting machine: Used to separate the fibre material in tyres and improve the purity of the recyclables.

08/

Dedusting equipment: Used to deal with the dust generated during processing to ensure the cleanliness of the production environment and the health of the workers.

09/

Rubber grinding machine: Used to grind tyres into powder, suitable for occasions where high fineness rubber powder is required.

10/

Packing machine: Used to pack the processed rubber powder or steel wire for easy storage and transport.



our service



Guarantee: 13 years from the shipping date



Pre-sales
Know customers' detailed requirement, provide more information and design the suitable process.




In sales
Confirm customer's requirement, Serious quality control during the whole procession, and feedback to customer. Provide high quality production. Honest and trustworthy.




After sales
Provide installation and training if customer need. Detailed operation manual and video for customer installation. Any problems will be solved within 24 hours. Broken parts will be sent to customer by air during guarantee period.





PACKAGING AND DELIVERY



productcate-1-1



FAQ



Q: When we receive your machine ,is there any other accessories we will get?

A: Yes,some easy abrasion spare parts will be provided free in case when some small problems happen.

Q: Can i mix different models in one container?

A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

Q: Do you have the products in stock?

A: No, because different countries have different voltage and frequency. But standard 1000L oil Tanks are in stock.

Q: How does your factory do regarding quality control?

A: One Year Quality Warranty And Life-time Technical Support.

Q: How is your price level?

A: Factory direct sale, we have whole production line work process from platform to main parts.

Q: How can i get the after-service?

A: DEIICHEN will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.

Q: After we placing an order, will you arrange the installation of the machine at present?

A: All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.

Q: About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

A: The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.

Q: May i know which payment will be accepted by your company?

A: So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.

Q: Can the machine be customized as our need, such as put on our logo?

A: Surely our machine can be customized as your need, Put on your logo is also available.

Q: What is the delivery time of your machine?

A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

Q: How does a tire recycling machine work?

A: Tire recycling machines employ a series of processes to transform used tires into reusable materials. The primary stages include shredding, granulating, and separating. Initially, tires are fed into the shredder, where they are broken down into smaller pieces. These shredded pieces then undergo granulation, where they are further reduced in size to produce granules or crumb rubber. Finally, through various separation techniques, the different components of the tire, such as rubber, steel, and fabric, are extracted and collected for further processing or reuse.

Q: What are the benefits of tire recycling machines?

A: Tire recycling machines offer several key benefits, both environmental and economic. Firstly, they help mitigate the environmental impact of discarded tires by diverting them from landfills and incineration, thereby reducing pollution and conserving valuable landfill space.

Q: Are tire recycling machines suitable for all types of tires?

A: Tire recycling machines are designed to process various types of tires, including passenger car tires, truck tires, and even large industrial tires. However, the specific capabilities of a tire recycling machine may vary depending on its design and specifications.

Q: What is the output capacity of a typical tire recycling machine?

A: The output capacity of a tire recycling machine can vary widely depending on factors such as the size and type of tires being processed, the configuration of the machine, and the desired end products. Generally, larger machines with higher throughput capabilities can process more tires per hour.

Q: Is there a market for recycled tires?

A: Increased demand for sustainable products: As sustainability becomes a key consideration for consumers and businesses, there is a growing demand for products made from recycled tires, such as rubberized asphalt, crumb rubber products, and tire-derived fuel.

Q: How profitable is tire recycling?

A: Tire recycling can be profitable, especially when the recycled materials are repurposed into valuable products such as rubber mulch, athletic turf, or other commercial applications. However, profitability depends on factors like the technology used, the scale of operations, and the market demand for recycled products.

Q: What is the best technology for recycling tires?

A: Pyrolysis is a thermochemical process that decomposes tires at high temperatures in the absence of oxygen, producing pyrolysis oil (TPO), gas, and carbon black. Pros: Recovery of valuable materials such as oil and carbon black. Significant reduction of waste.

We're professional rubber tire recycling machine manufacturers and suppliers in China, specialized in providing high quality OEM service. We warmly welcome you to buy high-grade rubber tire recycling machine for sale here from our factory. For price consultation, contact us.
