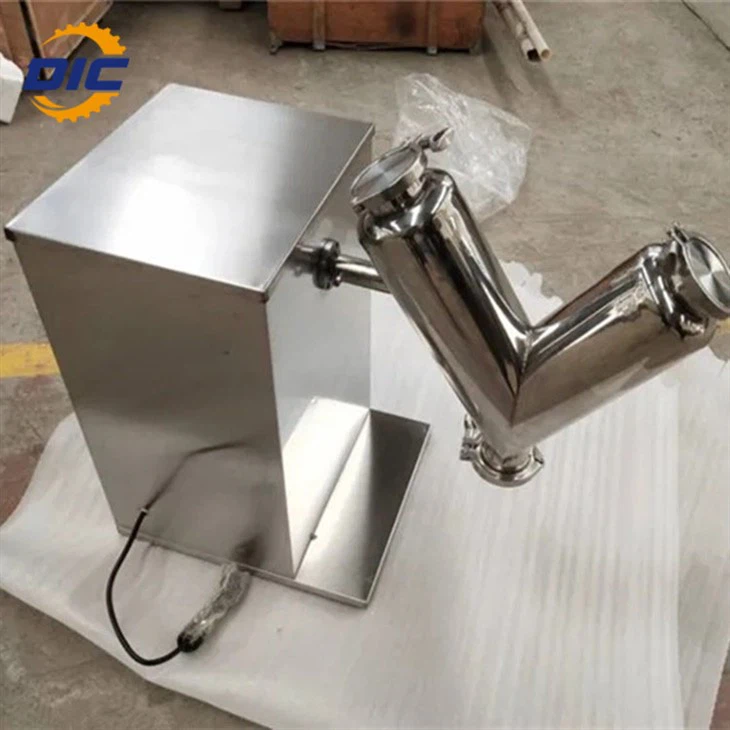

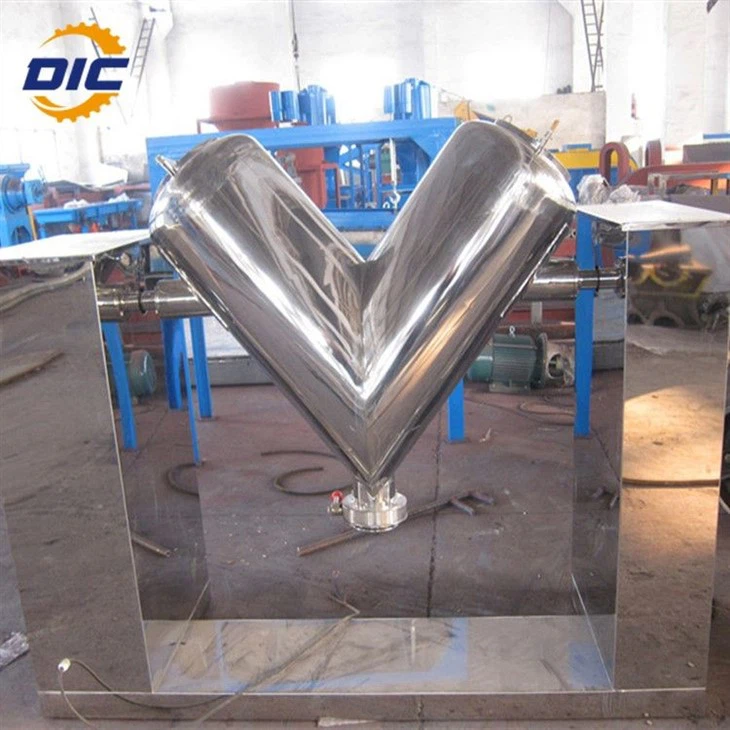

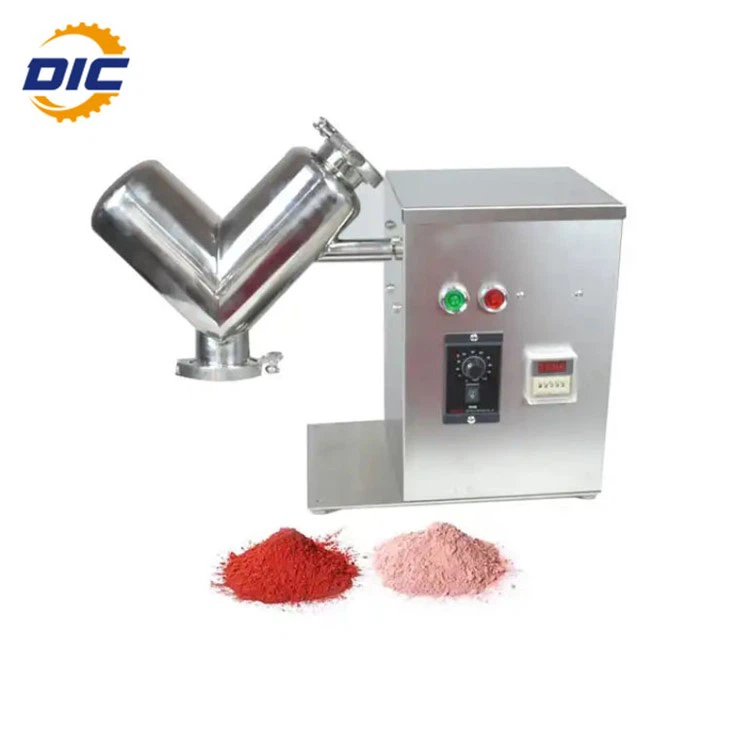

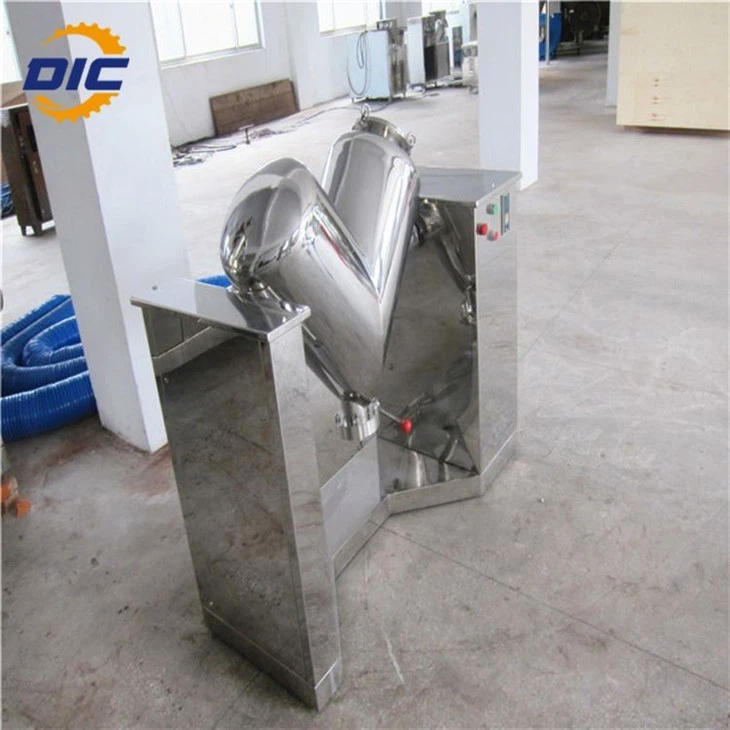

This v mixer machine is mainly used for uniform mixing of powdery and granular materials in industries such as pharmaceuticals, chemicals, electronics, and food.The V-shaped cylinder is driven by the driving shaft to rotate around the center of the rotation axis, and the materials in it also undergo gravitational diffusion with the two inclined cylinders of the V-shaped cylinder.
Technical Parameters
|
Model |
Gross volume (L) |
Working volume (L) |
Mixing time (min) |
Rotary speed (rpm) |
Power (kw) |
Weight (kg) |
|
V-50 |
50 |
30 |
4-8 |
20 |
0.75 |
160 |
|
V-180 |
180 |
108 |
6-10 |
12 |
1.1 |
260 |
|
V-300 |
300 |
180 |
6-10 |
12 |
1.5 |
380 |
|
V-500 |
500 |
300 |
6-10 |
12 |
2.2 |
550 |
|
V-1000 |
1000 |
600 |
6-10 |
12 |
3 |
900 |
|
V-1500 |
1500 |
900 |
6-10 |
12 |
4 |
1200 |
|
MARKS: There are many kinds of Food & Medicine & Chemical Processing Machine for your choice, please be free to contact with us. |
||||||

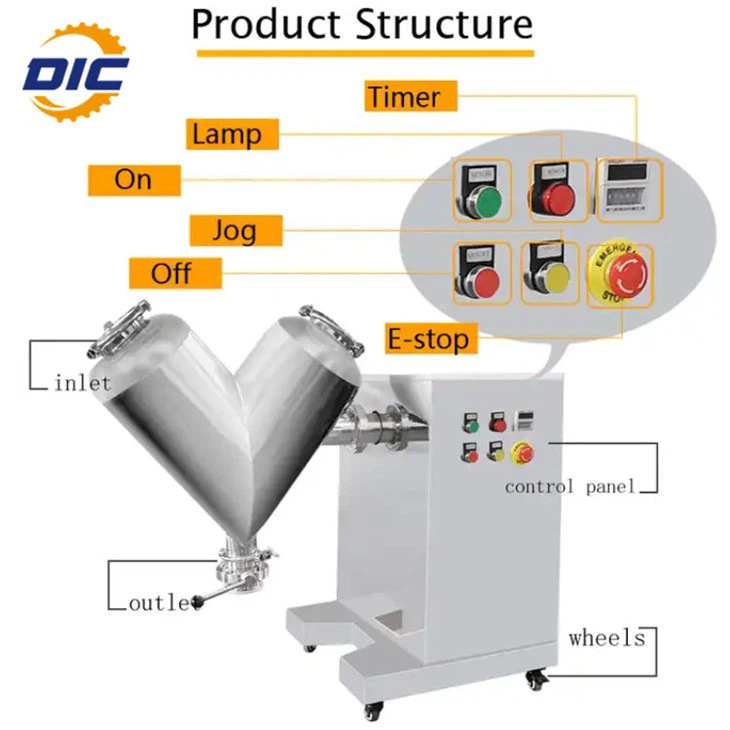

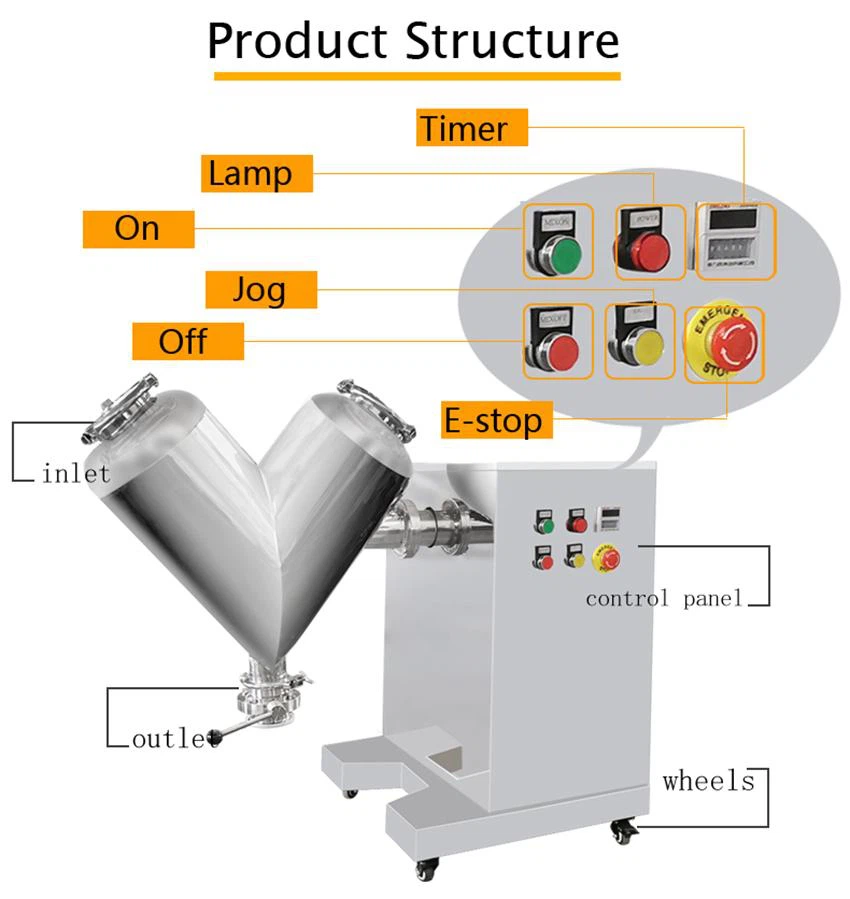

Structural features:

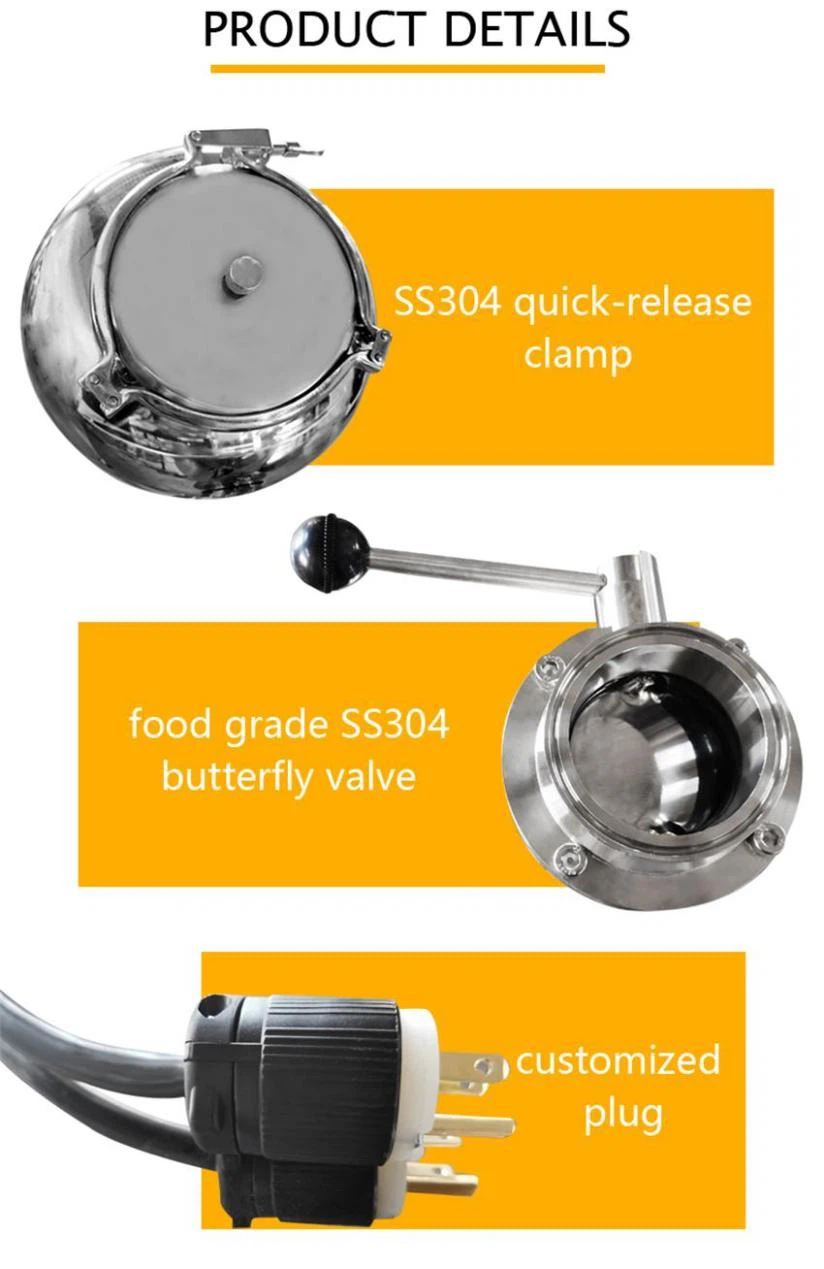

This V shaped mixer machine is mainly composed of a mixing cylinder, a rack, a transmission system, an electrical system, and other parts. It uses two asymmetric material cylinders and uses gravity mixing. The materials continuously gather and disperse in the cylinder, usually after about 15 minutes of mixing, to fully and evenly mix two or more types of powder and granular materials. It is particularly suitable for mixing two or more types of materials with a large difference in specific gravity, and the mixing uniformity reaches over 99%, The inner and outer walls of the mixing cylinder have undergone precision polishing treatment, resulting in a smooth, flat surface, no dead corners, and easy cleaning. During the working process of the transmission system, there is no shaking, no noise, and easy maintenance. The electrical control is precise and sensitive, and stainless steel butterfly valves are used for material discharge, without leakage or dust flying. This V shaped mixer machine has a unique design, beautiful appearance, and a wide range of uses, making it an ideal equipment for material mixing.
Product application
DEIICHEN MACHINERY professionally developed v mixer machine is suitable for mixing powder particles with good material fluidity and small physical differences, as well as materials with low mixing requirements and short mixing time. Due to the smooth flow of materials in the V-shaped mixing container, it will not damage the original shape of the materials. Therefore, the V-shaped mixer is also suitable for mixing granular materials that are prone to breakage and wear, or for mixing finer powder particles, blocks, and materials containing a certain amount of water. It is widely used in pharmaceuticals Chemical, food and other industries.
